Schlage Latitude Lever Specifications

Schlage Latitude door levers have a simple contemporary design. The Schlage Accent Lever is available in 9 finishes and 4 functions.

• BHMA Grade 2
• ADA Compliant
• Adjusts to fit all standard door preparations
• Non-Handed Means you don't have to worry about door handing when ordering
• Easy installation -- One-person project; no extra hands needed
• Quality materials and construction for exceptional security
• Lifetime finish and mechanical guarantee
• Quality finishes coordinate with plumbing and lighting
• Comes with rounded corner strike and mortise plates, square are available upon request
• Adjustable Backset -- 2 3/8" or 2 3/4"
• Fits standard door thickness of 1 3/8" - 1 3/4"
• Keyed function available with SecureKey Cylinders. (SecureKey allows you to re-key your lock without having to remove it from the door)

Be sure to order your Schlage Deadbolts
too so we can key them alike.

What You Should Know About the Schlage Latitude Lever:

Note: Schlage entrance locks have a turn button on the inside and are designed to stay locked unless turn button lock is disengaged by the user. Schlage privacy locks have a push button lock on the interior which is disengaged when the knob or lever is turned from the inside.

schlage latitude lever handle installation
schlage latitude lever handle template

Measurements for Schlage Latitude Lever

Schlage lever handles are available in several functions. Please review the descriptions below so you can order the correct Lever Handle for your application.

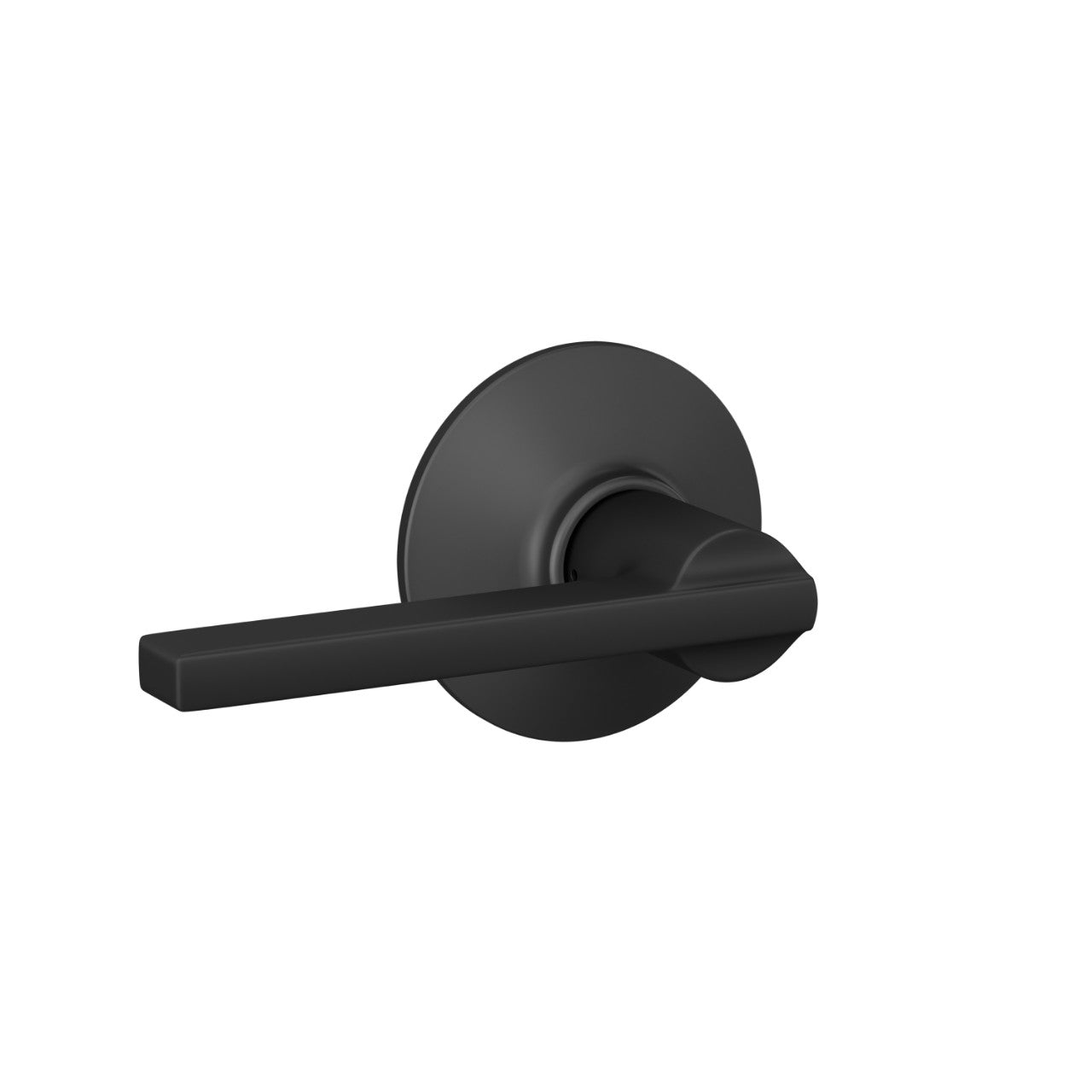

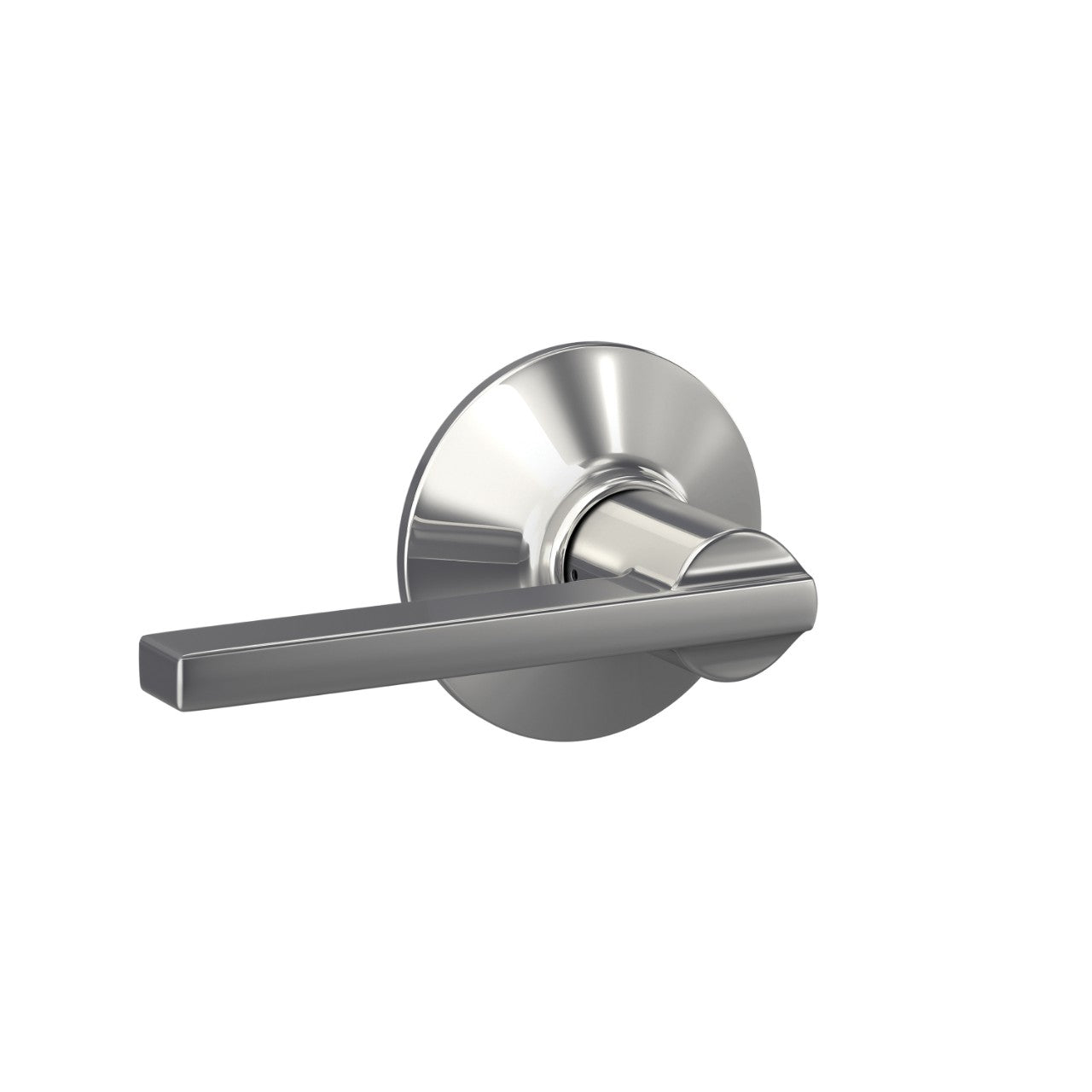

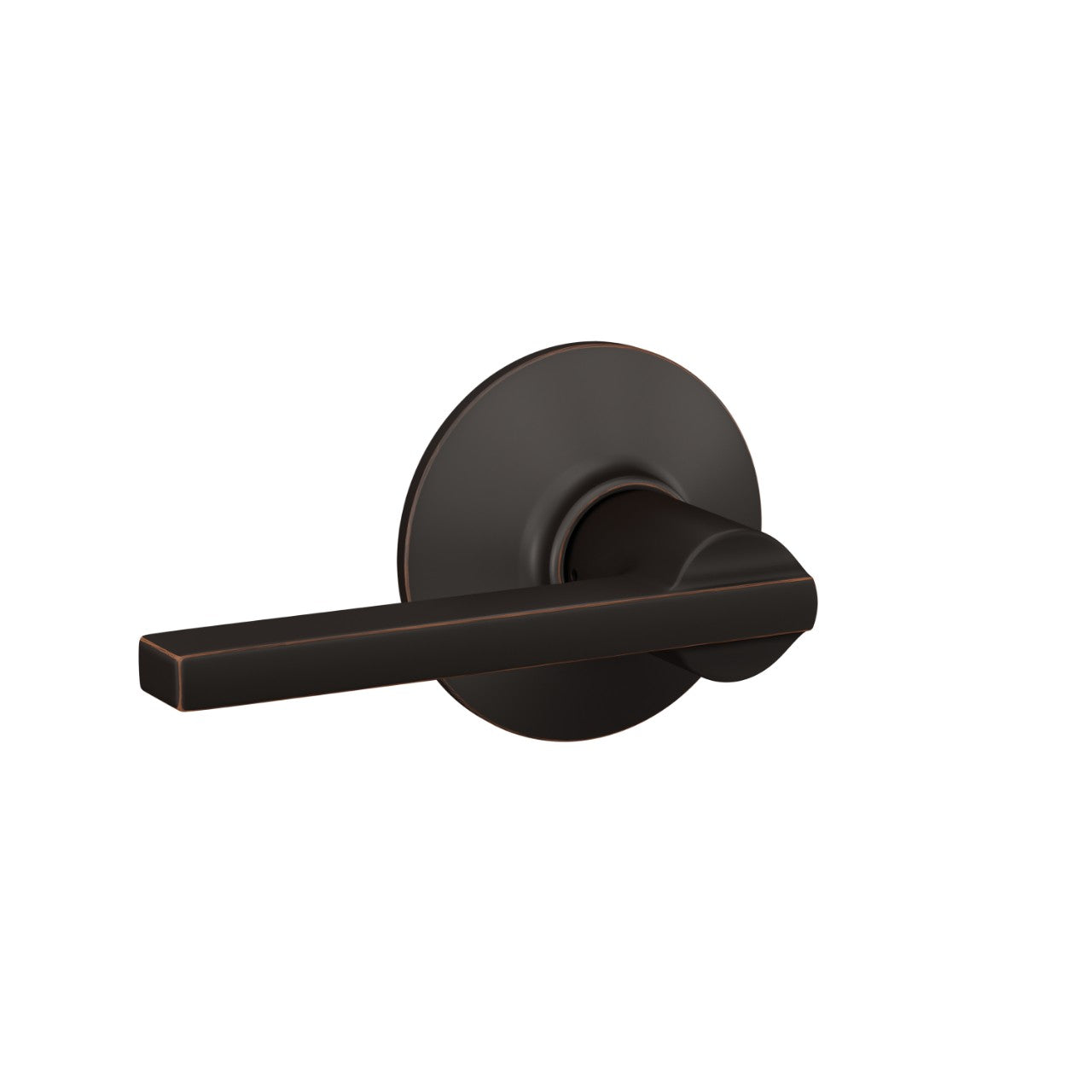

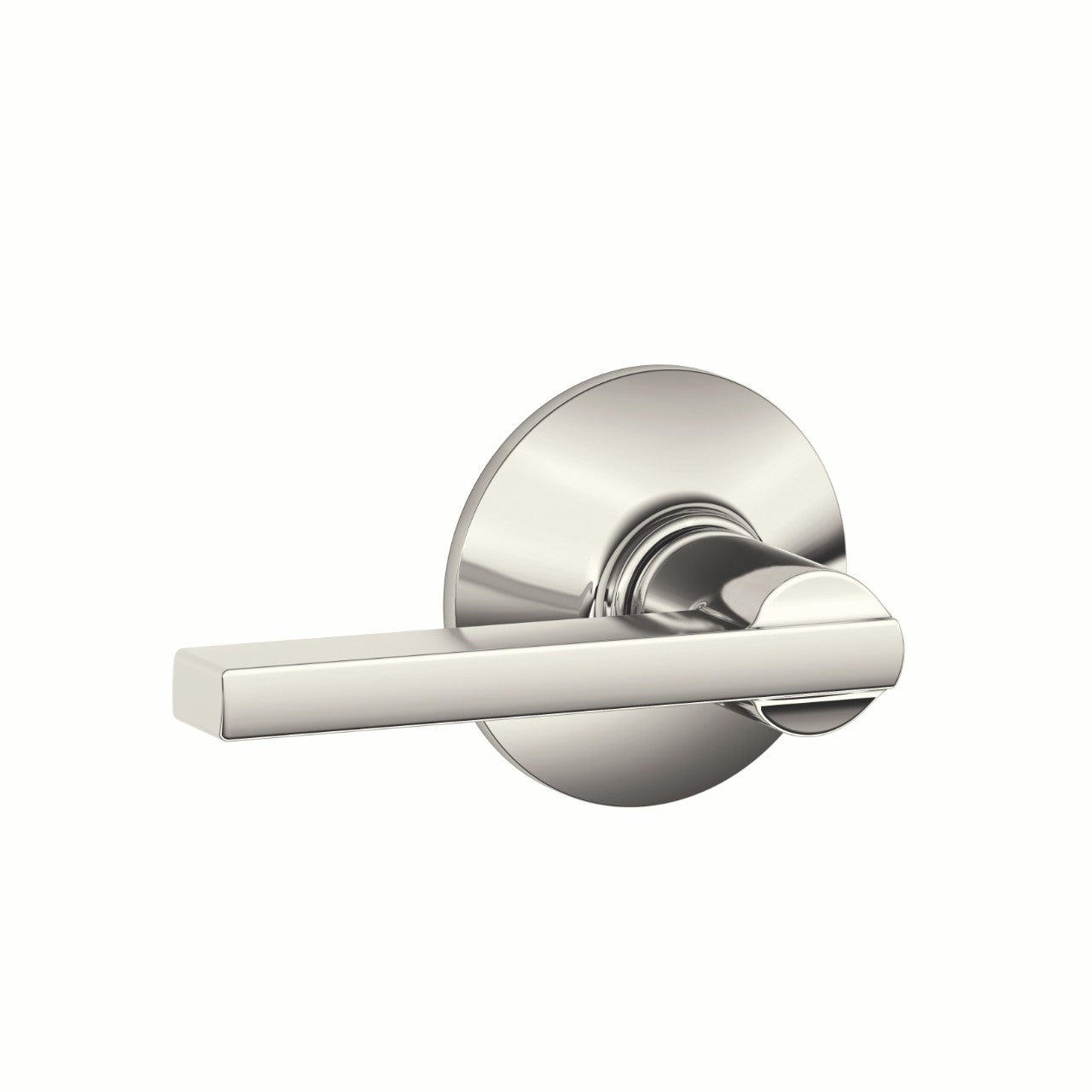

	Passage or Hall and Closet Doorlevers are used on doors that do not require a locking mechanism. Halls, closets, pantry or laundry doors will generally use a passage leverset. Passage levers do not have a locking mechanism.

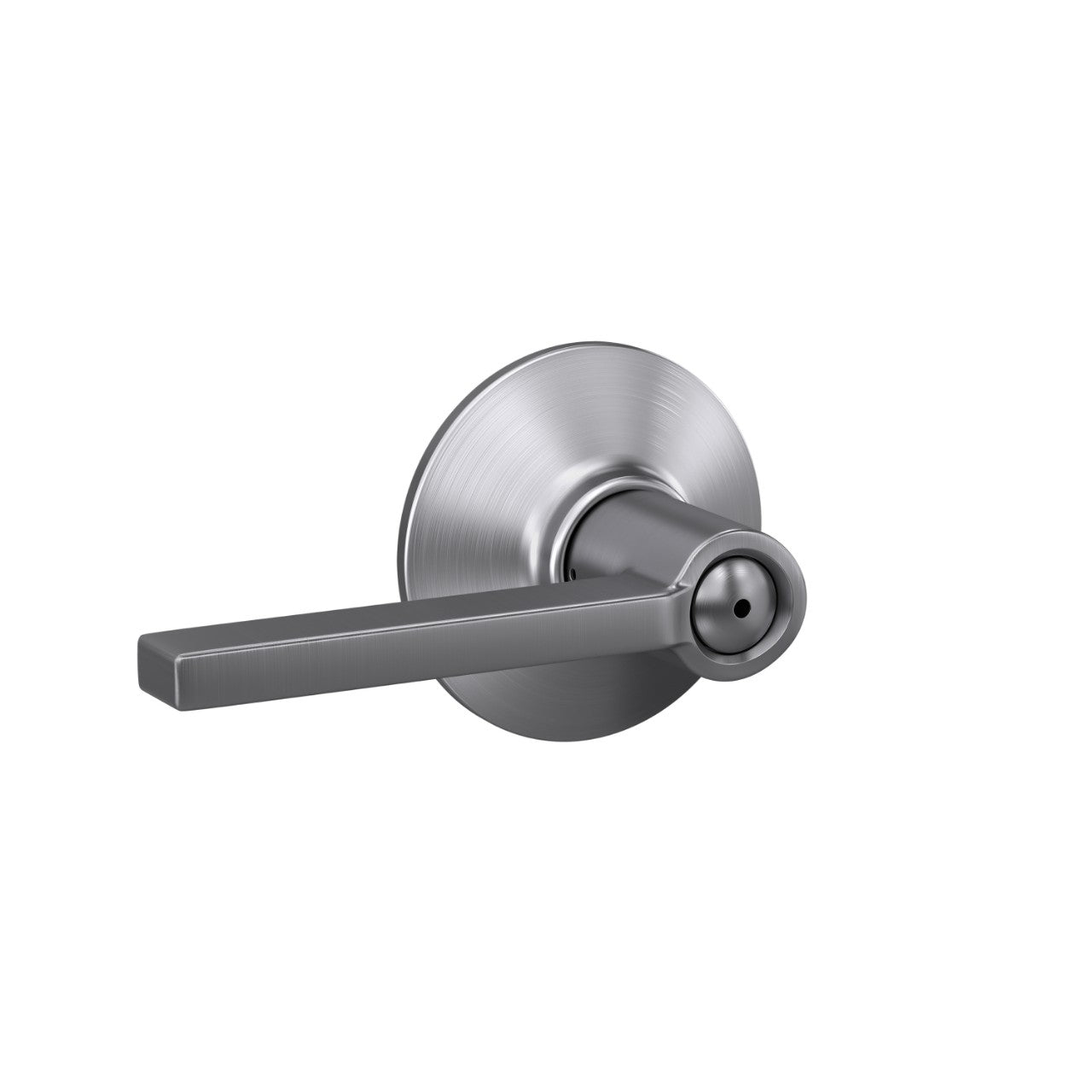

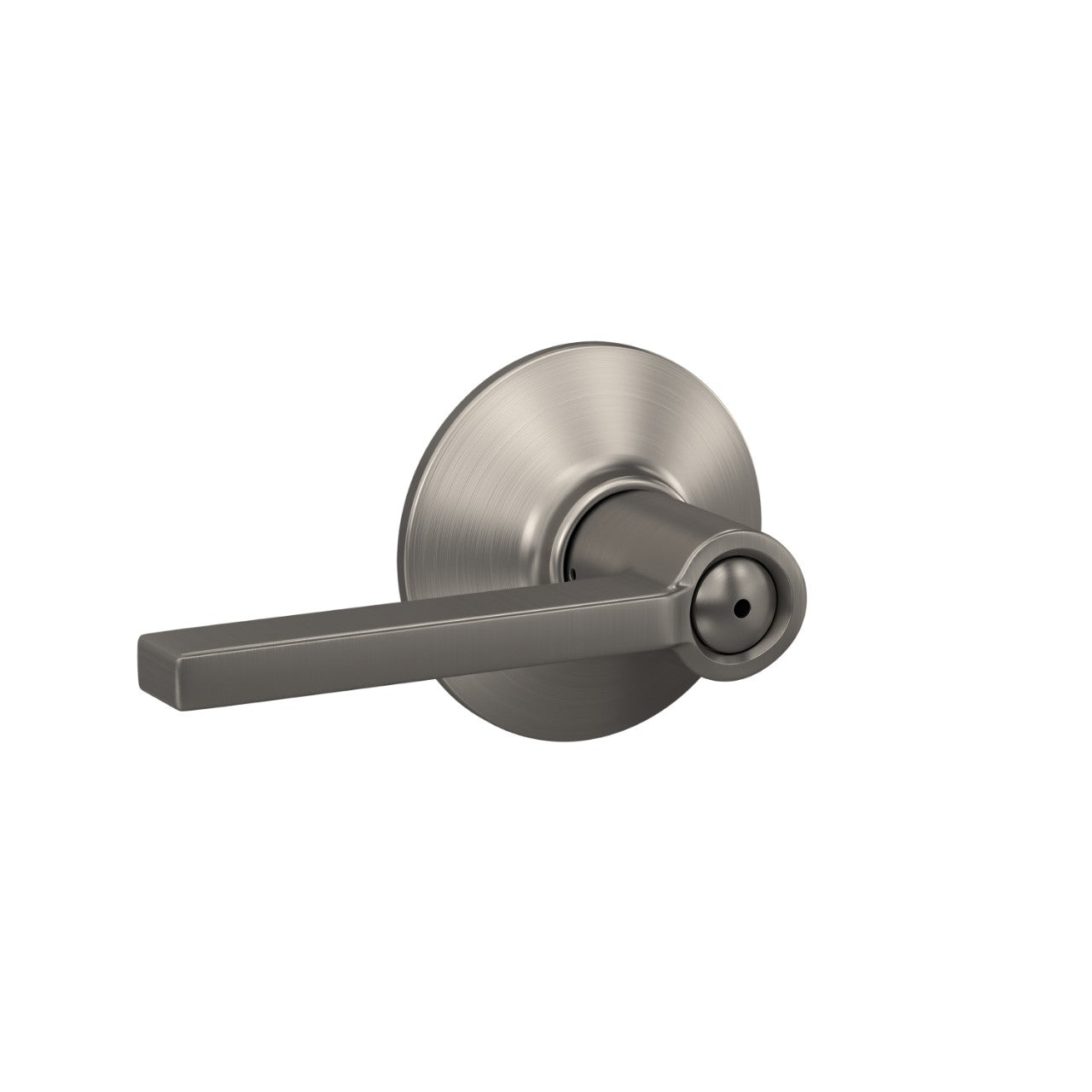

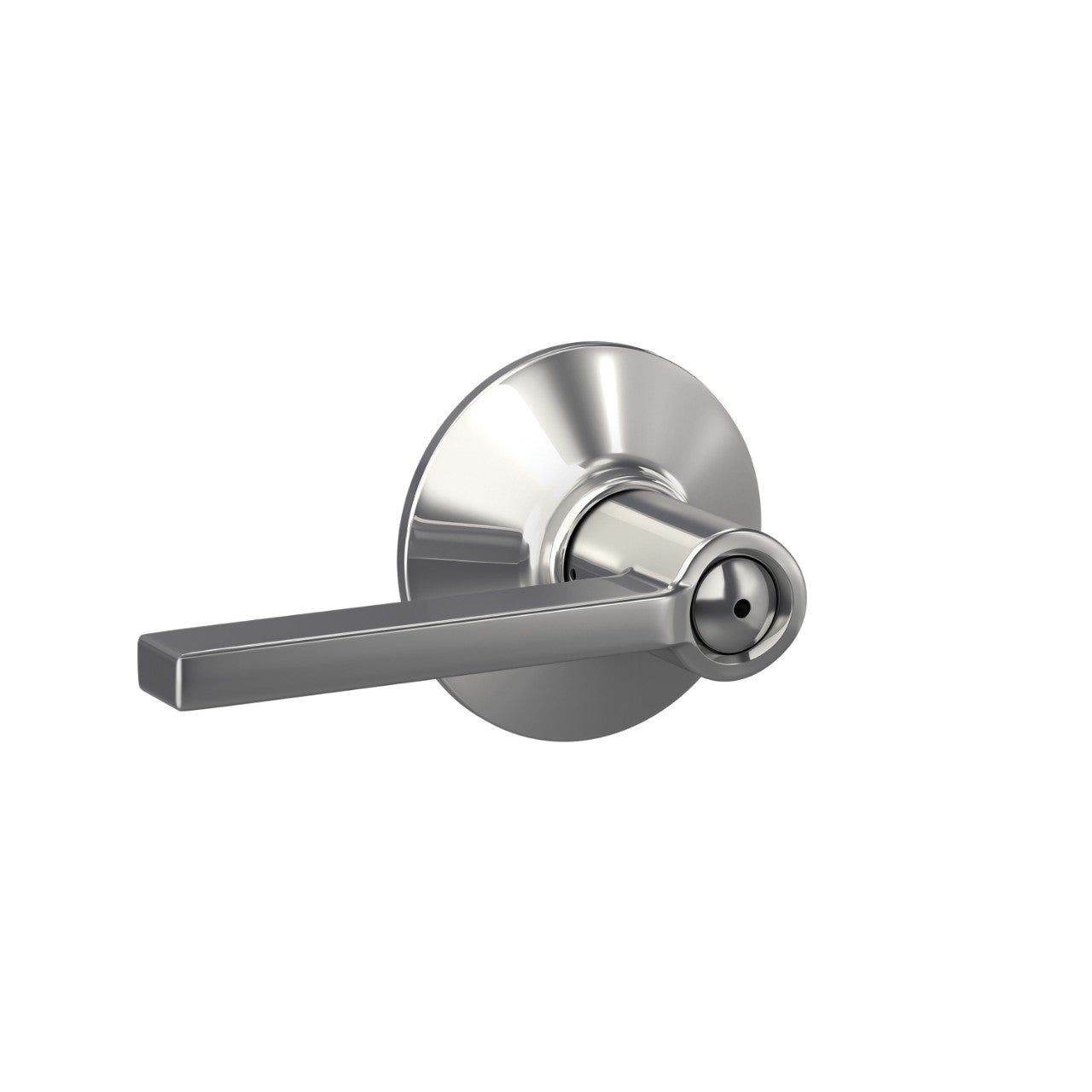

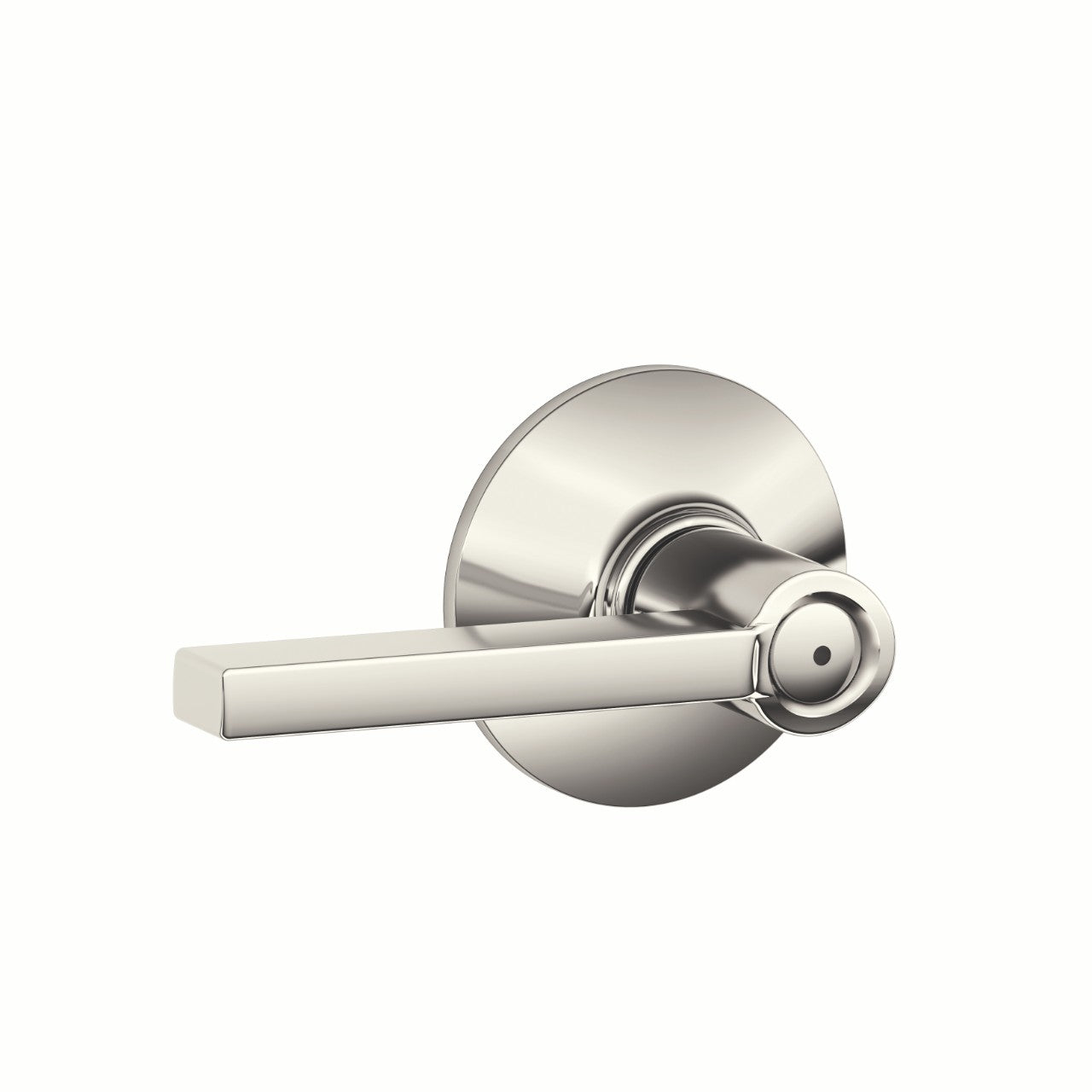

	Privacy or Bed and Bath lever handles are most often used on Bedrooms, Baths or Office doors where a lock for privacy while occupied is desired, but a keyed lock is not really necessary. Schlage privacy levers have a turn button on the end of the knob as shown to the left to activate the lock. On the outside, there is a pin hole for emergency unlocking. Some levers will have a pin hole inside a circular piece, some just have a small pinhole.

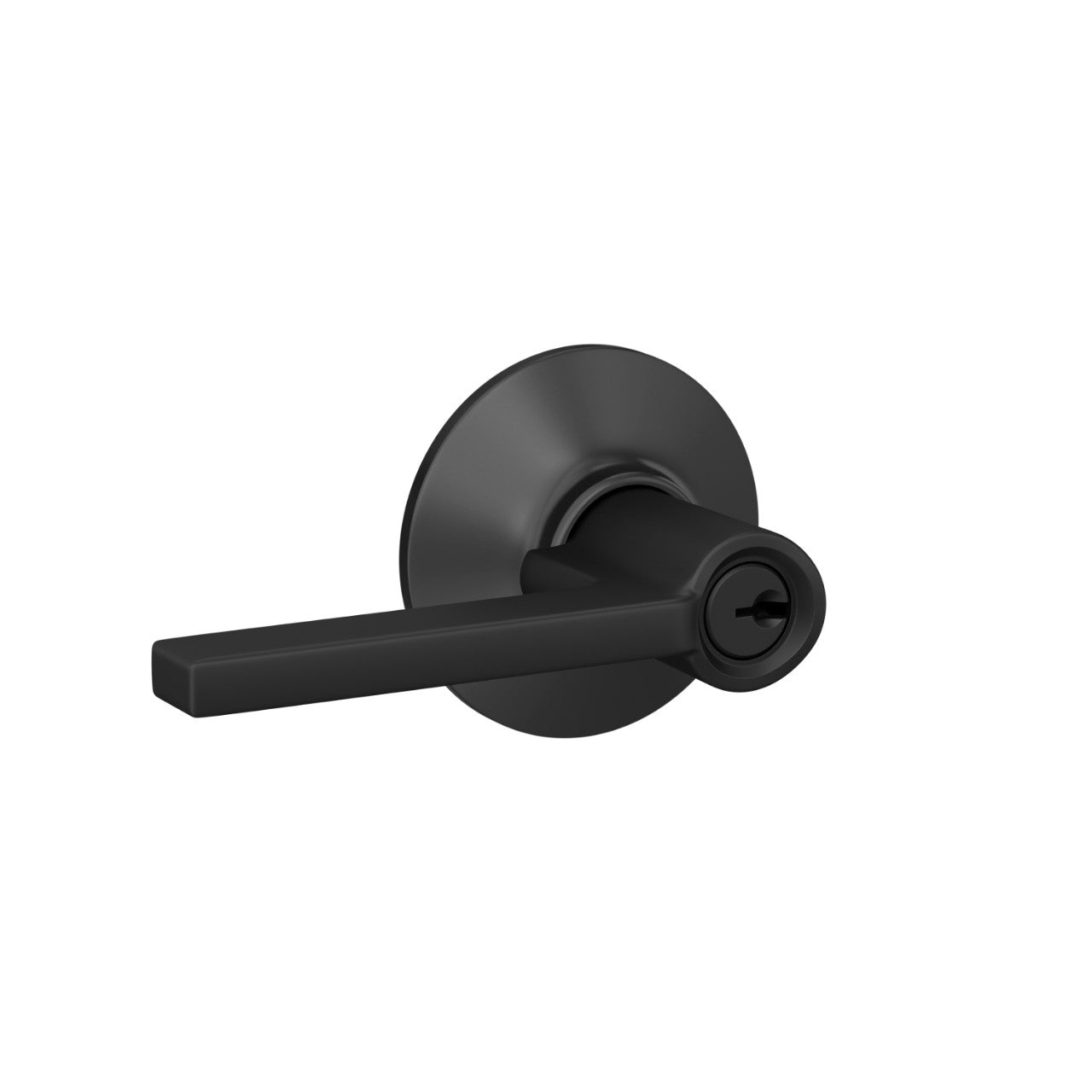

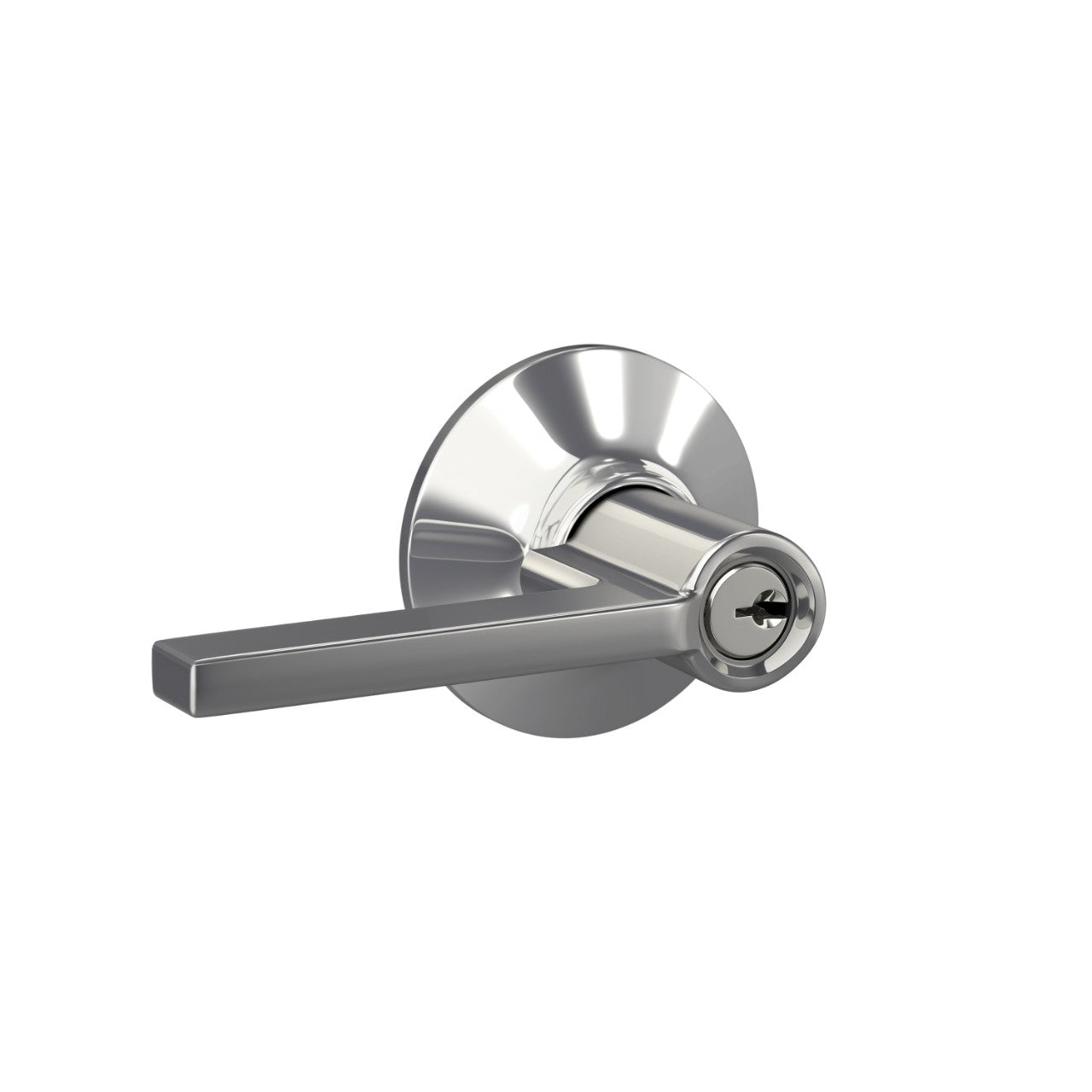

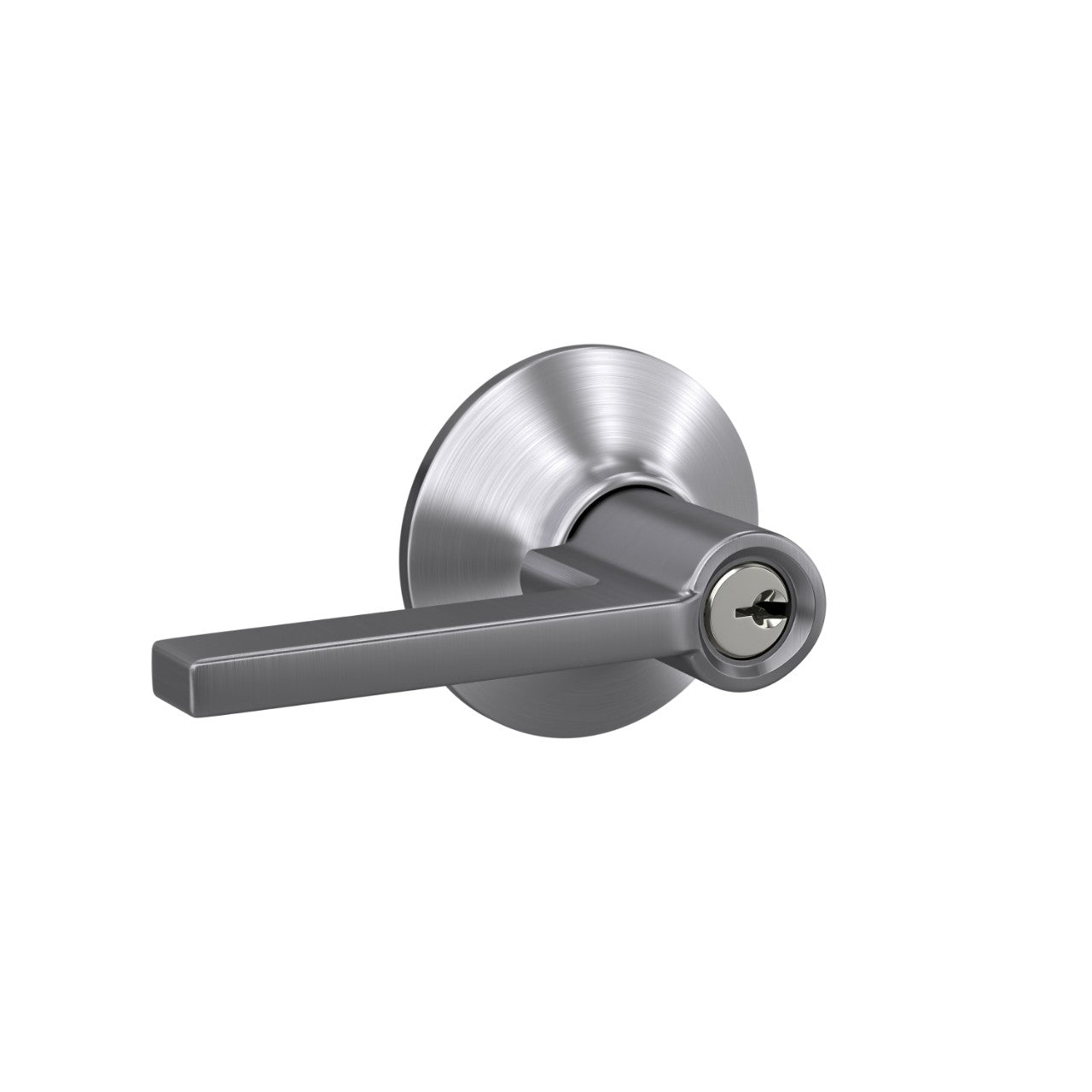

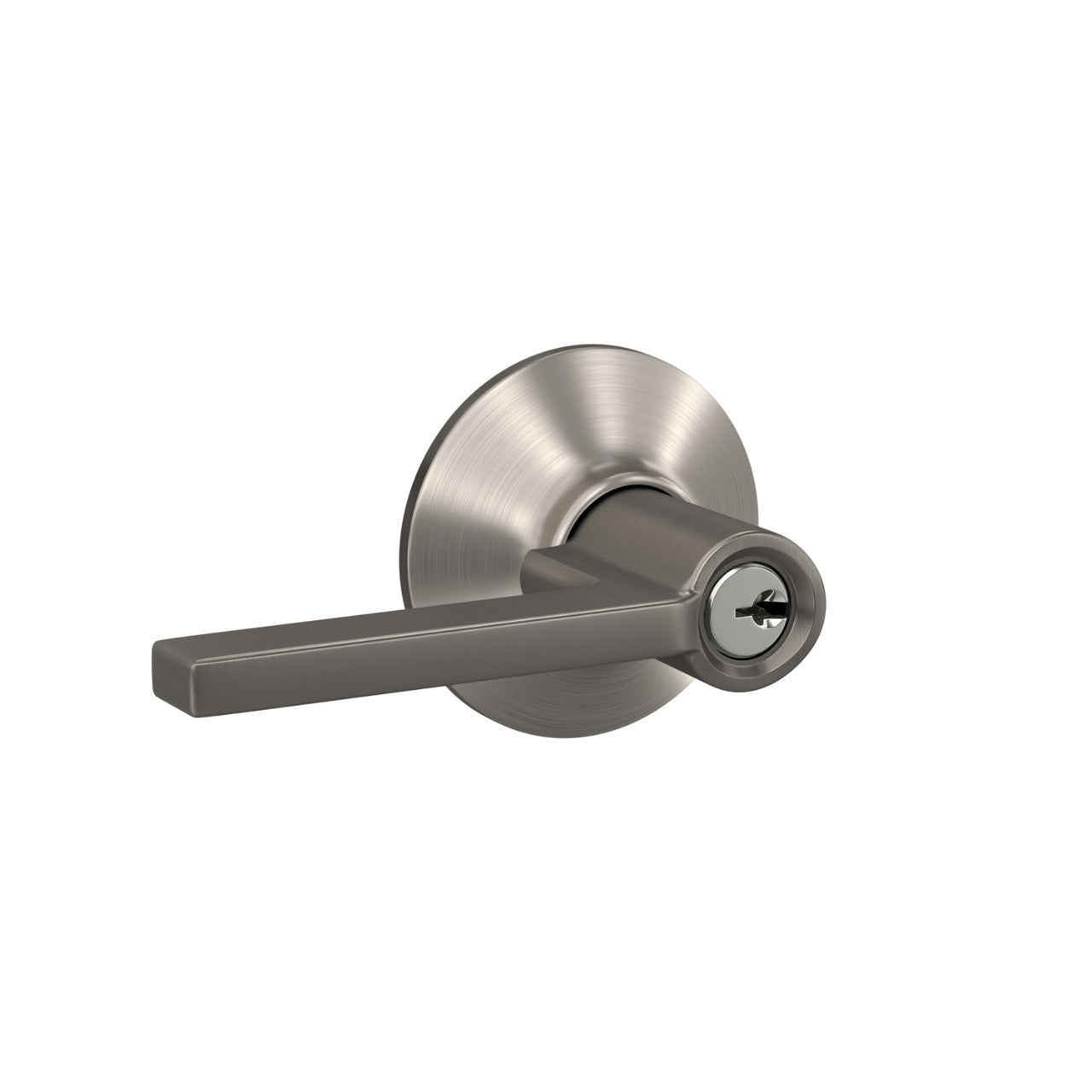

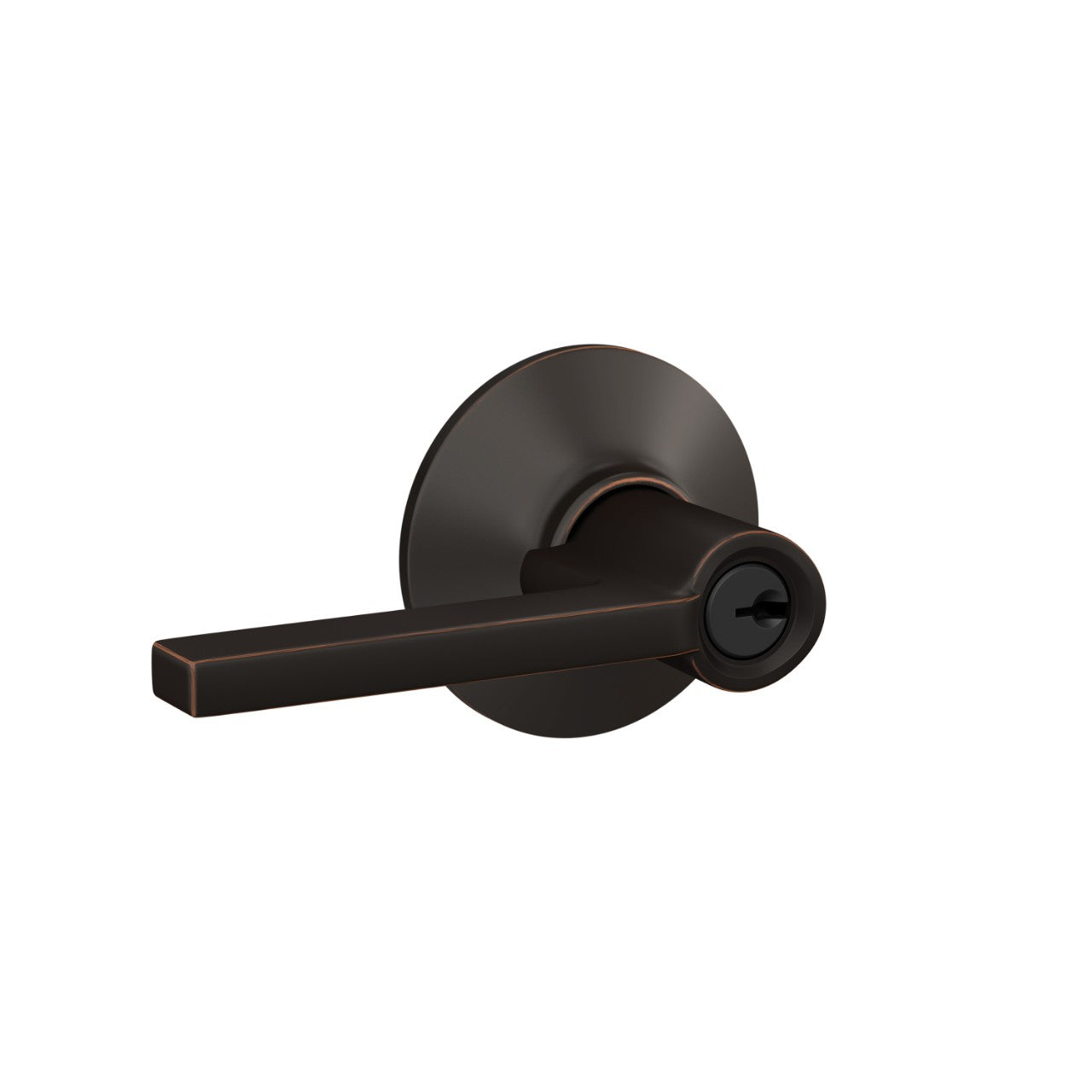

	Keyed Entrance lever handles are generally used on exterior doors, but sometimes used on interior doors where security is a concern. Schlage keyed entrance levers have a push pin lock on the inside backplate, similar to a privacy lock. On the outside there is a keyed cylinder. If the knob is locked from the inside a key is required for entrance. If you are ordering several keyed locks of the same brand we can key them alike for you.

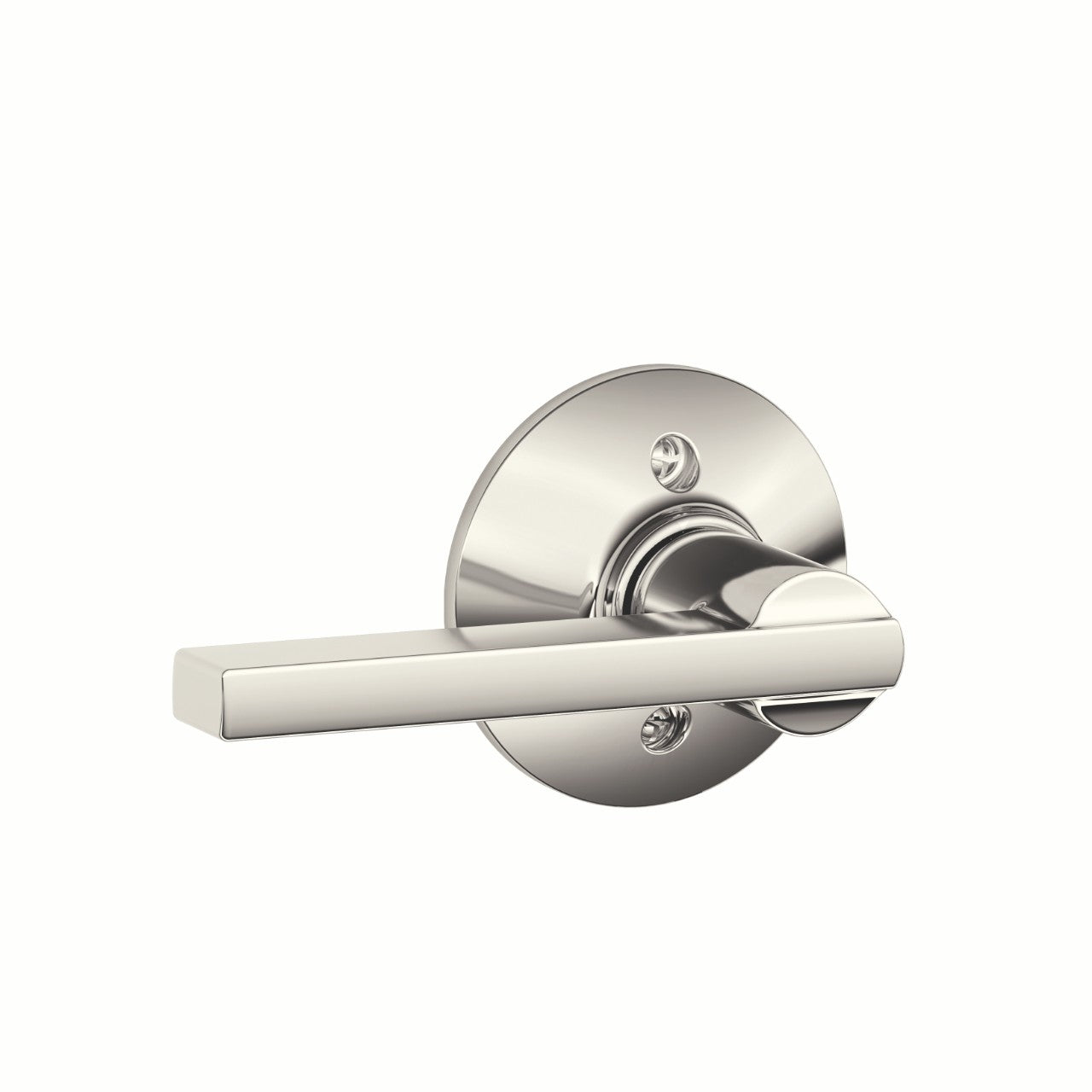

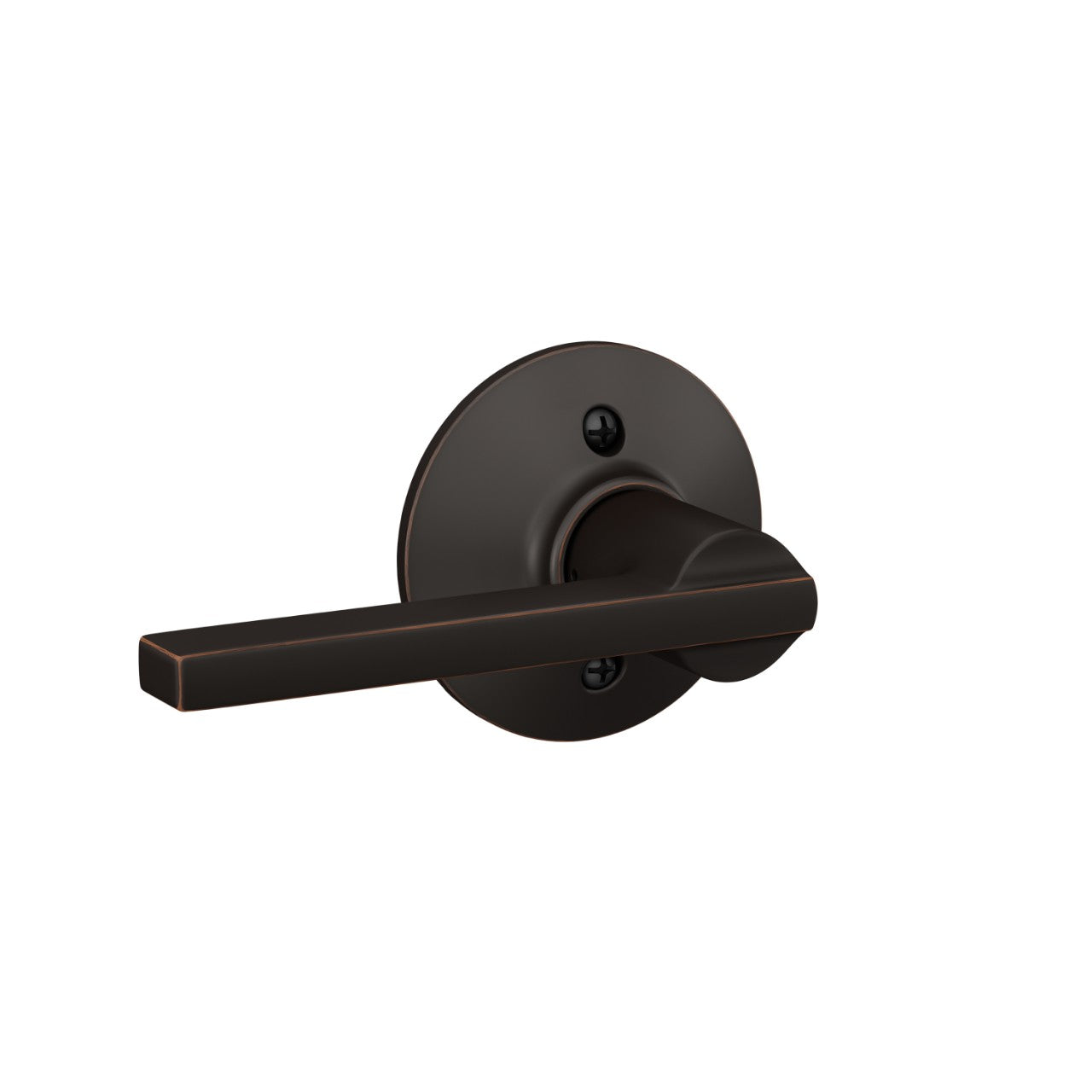

	Single Dummy Door Levers are sold individually. Dummy levers do not have a latch or mechanism of any kind. These levers are surface mounted to a door that has not been bored (large hole cut out) for a doorknob. Dummy levers are generally used on double doors that us a ball catch at the top to keep them closed so a latch is not required. They are also commonly found on the inactive side of a French door - a single dummy mounted on either side of the inactive door.

Passage Door Lever Contents
A Lever for both sides of the door, latch mechanism, strike plates and mounting screws.

Privacy Door Lever Contents
Levers for both sides of the door, latch mechanism, generic unlocking tool, strike plates and mounting screws.

Keyed Entrance Door Lever Contents
Levers for both sides of the door, latch mechanism, keys, strike plates and mounting screws. If you have several keyed locks keyed alike, there may not be a key for every lock shipped.

Single Dummy Door Lever
A single non functioning Lever and mounting screw.

Schlage lever handles can be returned within 60 days of purchase. Before returning you must obtain a return authorization number so that we can get your credit properly issued. There is a 15% restocking fee on all returned Schlage hardware. Please see our returns page for more details.

Schlage extends a lifetime limited mechanical and finish warranty and a one-year limited electronics warranty to the original consumer user (Original User) of our Schlage brand product (Product) against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Product was originally installed. See complete Schlage Warranty.
