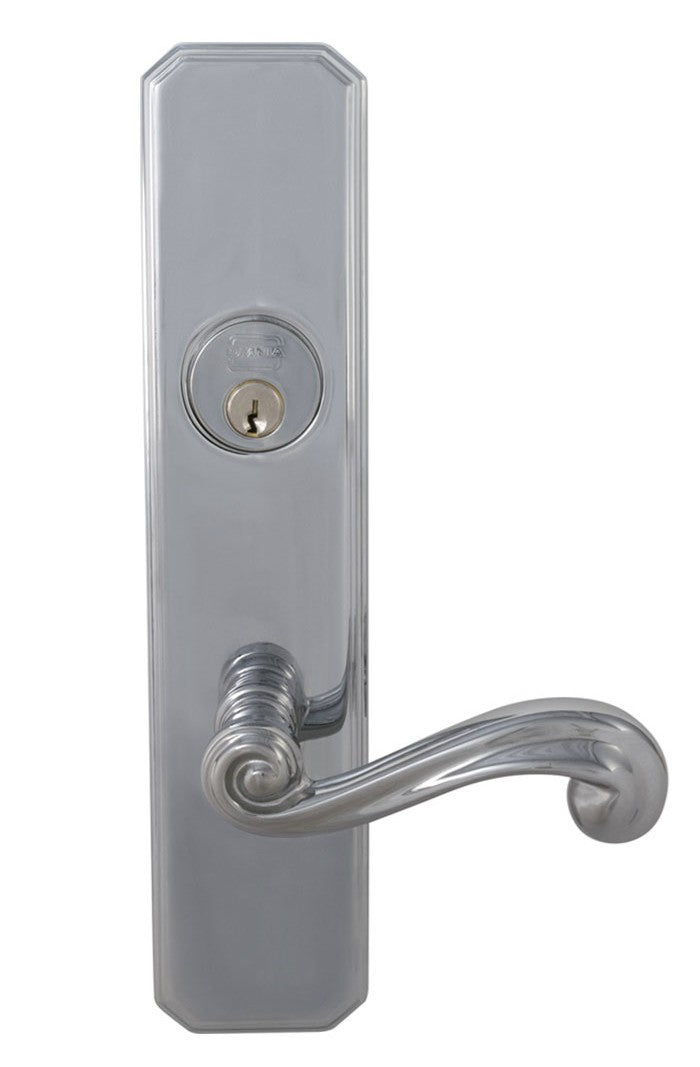

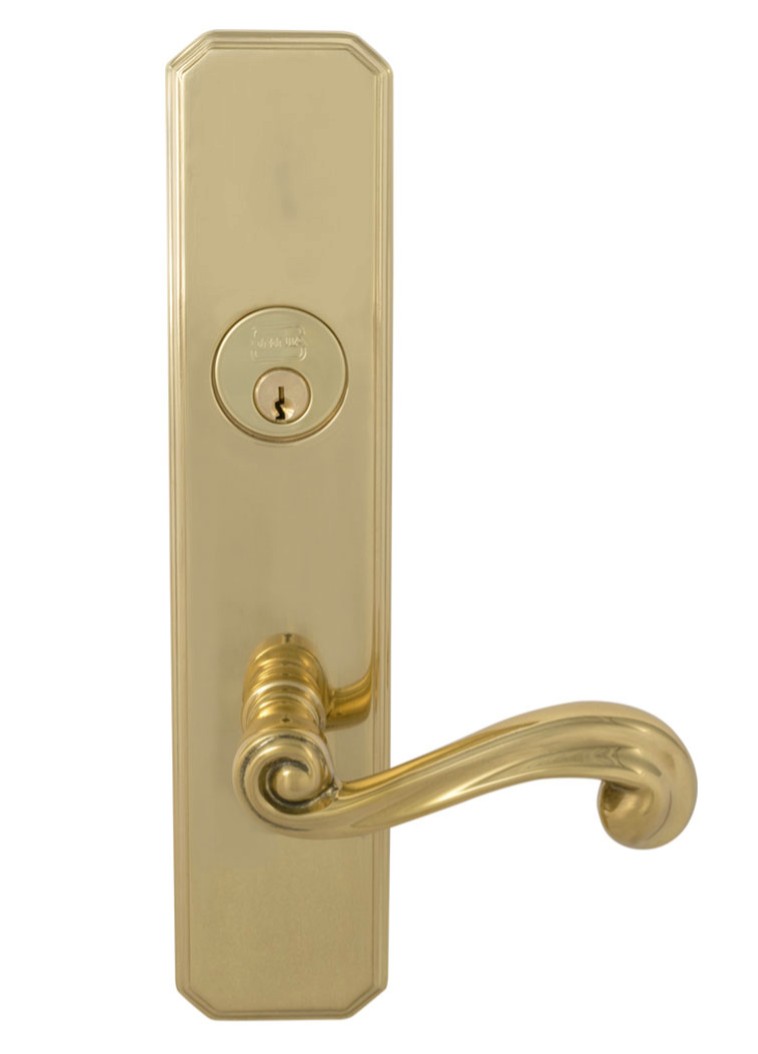

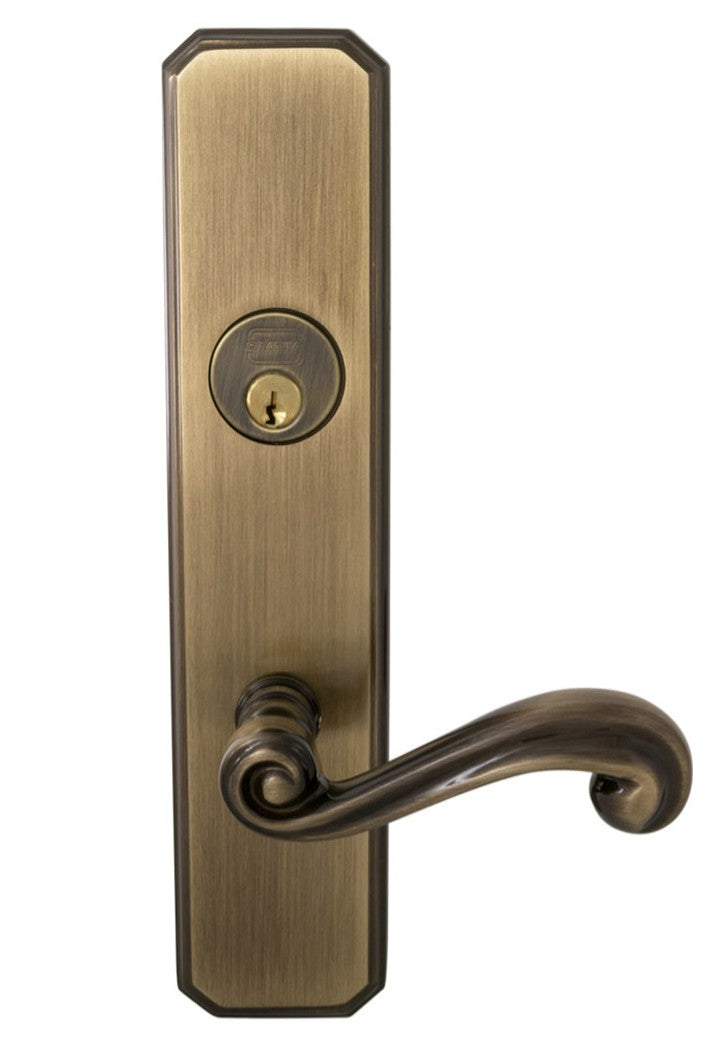

Omnia Max Steel Mortise Sideplate Lock Style 11055
| The 11055 sideplate mixes the style 11 backplate with the style 55 lever. It is a simple design with great results. Just remember your door has to be prepped for a mortise box for this lock to work for you. |

|
| Omnia Mortise Sideplate Lock Features | Latch Features |
|
| |
| - Fits mortise lock door prep. - For commercial and residential use. - 2 1/2" or 2 3/4" backsets available (must specify). - Shipped standard with 1 3/8" door thickness unless otherwise specified. - 10 5/8" x 2 3/8" Backplate |
| Available Finishes |
|
|
 |  |  |  |

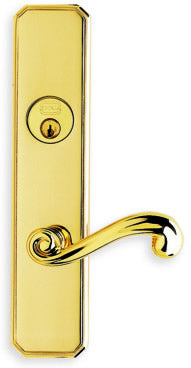

| Polished Brass | Polished Chrome | Shaded Bronze | Max Steel |
Order Help
Omnia Sideplate Functions
Omnia Sideplate Locks are available in several functions. Please review the descriptions below so you can order the correct sidplate lock for your application.
| Standard Entry Sideplate Locks The Latchbolt operates by the lever from either side except when exterior trim is locked by stop-button. It is then opened by outside key or inside lever. The deadbolt is activated by outside key and by inside turnpiece. | |
| Double Cylinder Sideplate Locks The Latchbolt operates by the lever from either side except when exterior trim is locked by stop-button. It is then opened by outside key or inside lever. The deadbolt is activated by key on either side of the door. | |
| Panic-Proof Sideplate Locks The Latchbolt operates by the lever from either side except when exterior trim is locked by stop-button. It is then opened by outside key or inside lever. The deadbolt is activated by outside key and by inside turnpiece. Turning the inside lever will retract both the deadbolt and latchbolt. | |
| Storeroom Sideplate Locks The latchbolt is operated by the inside knob and an outside key. The outside lever is rigid. An auxiliary latchbolt deadlocks the latchbolt. | |
| Classroom Sideplate Locks The latchbolt is operated by either lever unless the outside lever is locked by the interior key. An auxiliary latchbolt deadlocks the latchbolt. | |
| Passage Sideplate Locks The latchbolt is operated by both the inside and outside lever. | |
| Privacy Sideplate Locks The latchbolt is operated by both the inside and outside lever. A locking deadbolt is operated by the inside turnpiece and outside emergency key. Turning the inside lever will retract both the latchbolt and the deadbolt. | |
Warranty Information
All Omnia hardware is custom assembled per order and is subject to a 25% restocking fee when returned.
