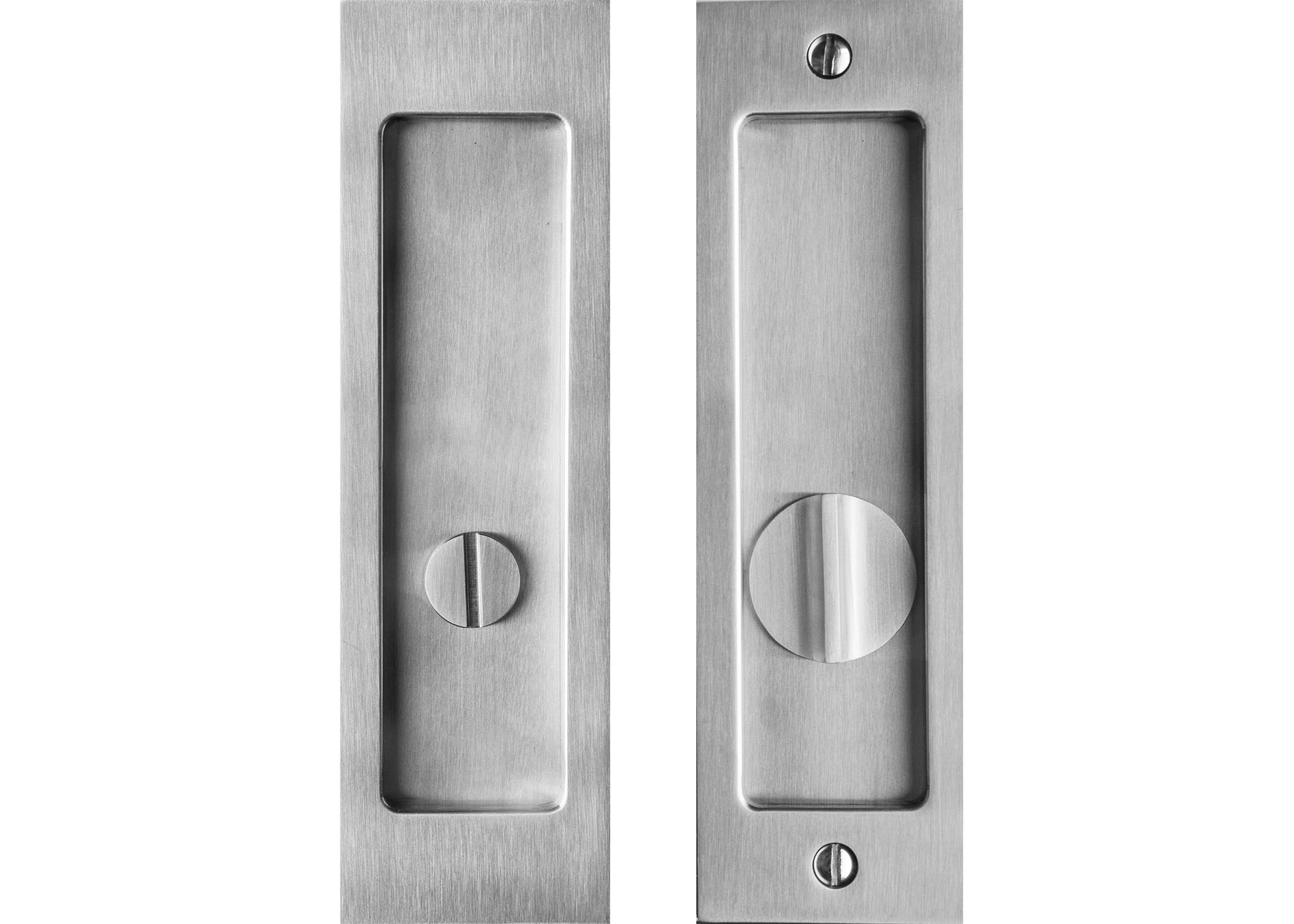

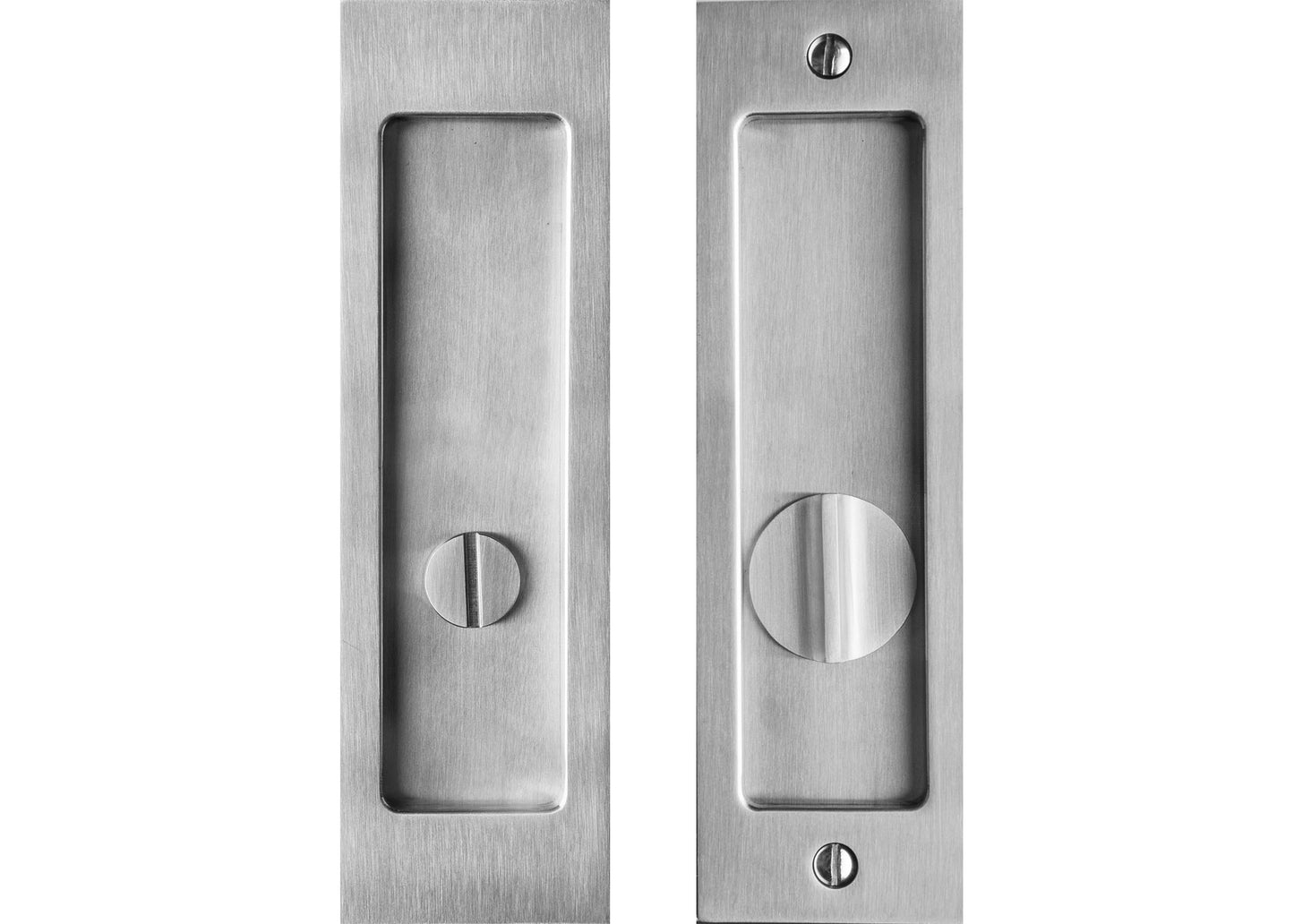

Linnea PL-160S Square Pocket Door Lock
Linnea's new Pocket Door Locks are available in two different functions and 2 different finishes. Simple, yet Stylish. Functional, yet Fashionable! This is more than just a piece of hardware -- it's a fashion statement!
Passage Function
No locking mechanism. Generally used on Hall/Closet type pocket doors. Exterior and Interior Pulls only.
Privacy Function

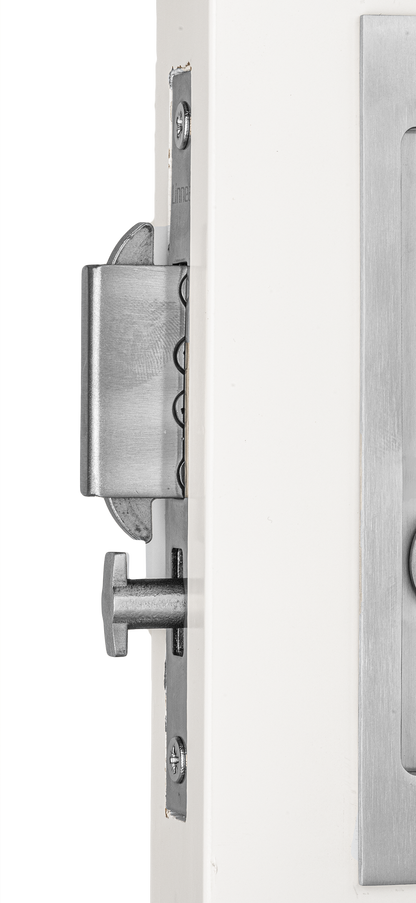

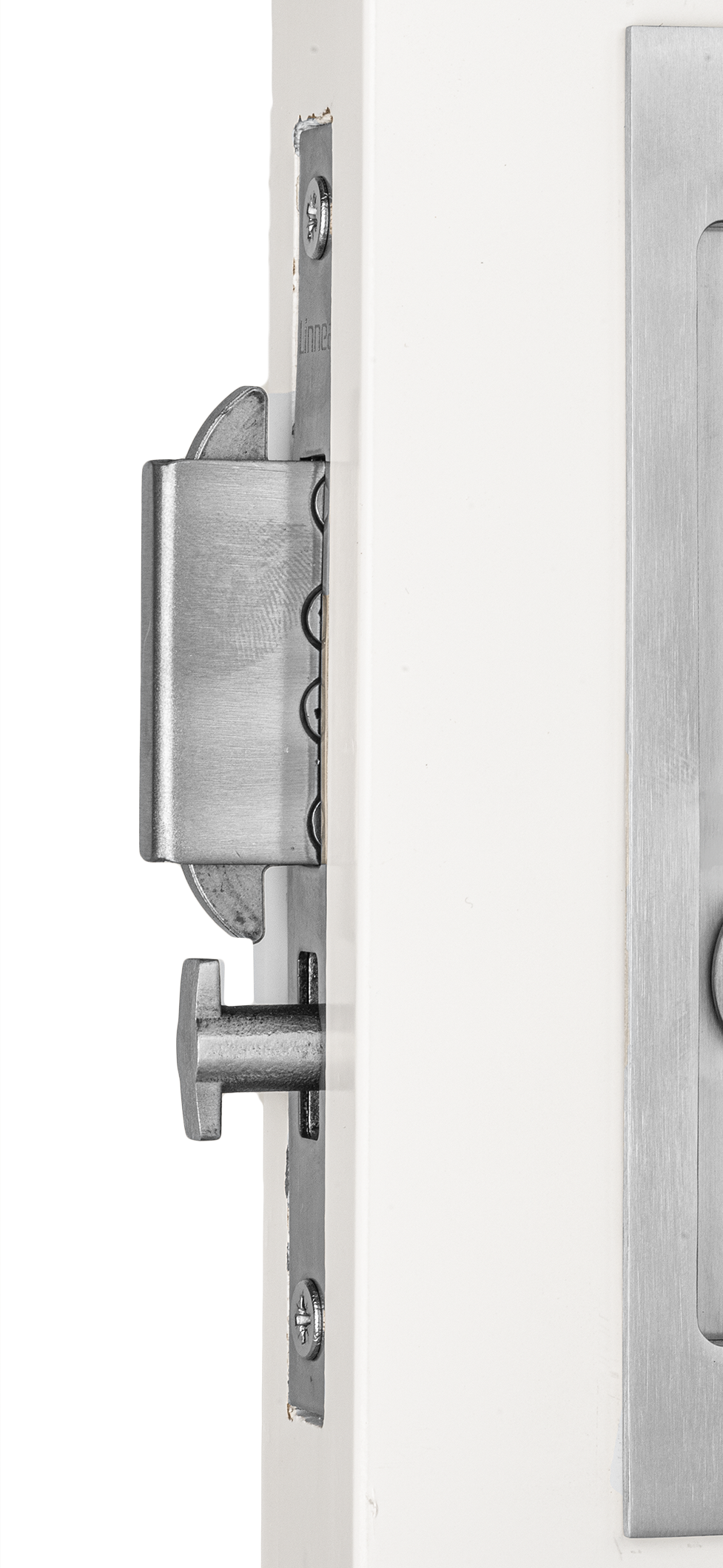

Mortise-style Lock. Generally used on Bed/Bath type pocket doors. In case of emergency, it can be unlocked using a coin, screwdriver, or similar object.
NOTE: The PRIVACY FUNCTION is shipped with the interior and exterior pulls and the Mortise Box. The PASSAGE FUNCTION is shipped with the interior and exterior pulls only. Also, an ADA Compliant turnpiece or drop ring is available in place of the straight turn piece shown. Mortise box has an integrated edge pull.
Pocket Door Lock Specifications
| Item | Function | Mortise Lock Body | Length | Width | Weight |
| PL-160S-PA | Passage | -- N/A -- | 160mm (6.30") | 40mm (1.57") | 16 oz. |
| PL-160S-PR | Privacy | 80mm x 52.75mm x 9.5mm (3.15" x 2.08" x 0.37") | 160mm (6.30") | 40mm (1.57") | 25 oz. |
About Linnea
Linnea -- defined by years of experience in the decorative and architectural hardware industry -- takes great pride in providing quality hardware following the latest domestic and overseas trends in contemporary and pristine design. All of Linnea's items are made from quality 304- or 316-grade stainless steel and solid brass. To put it simply, Linnea hardware products are made to last! Check out our entire line of hardware from Linnea.
- How to Install the Linnea PL160
- Installation Template (not to scale - Item ships with template to scale)
