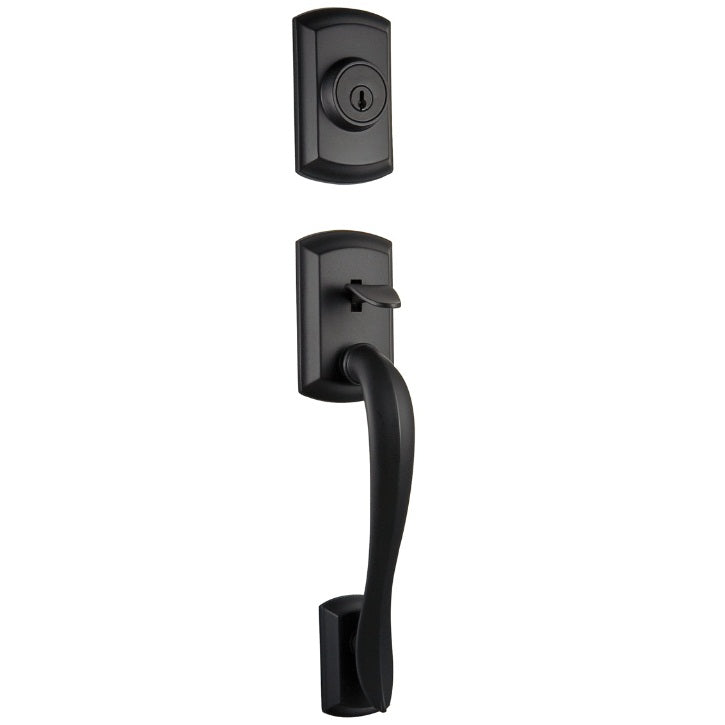

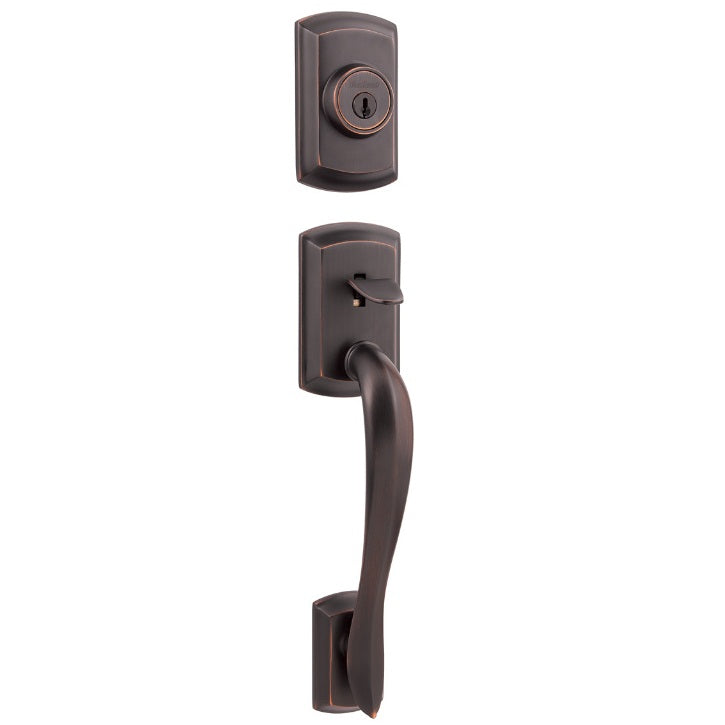

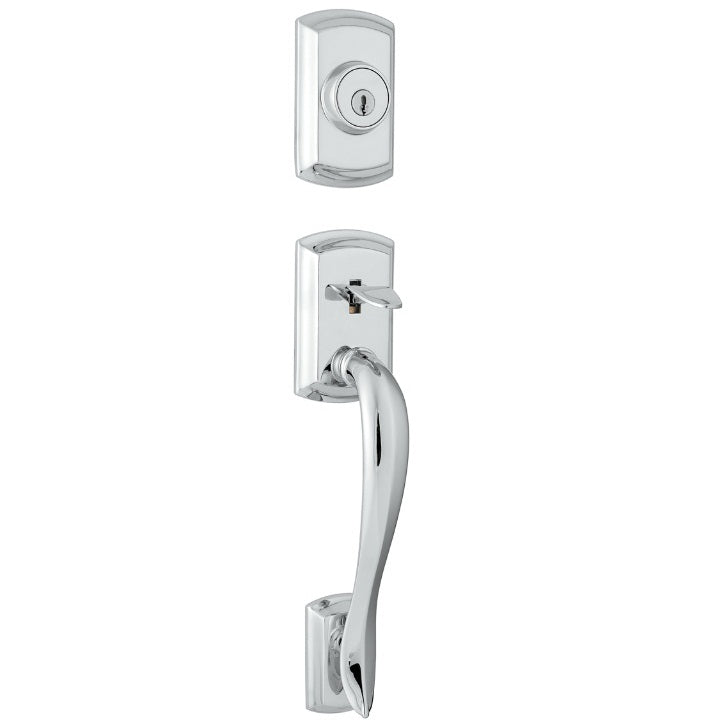

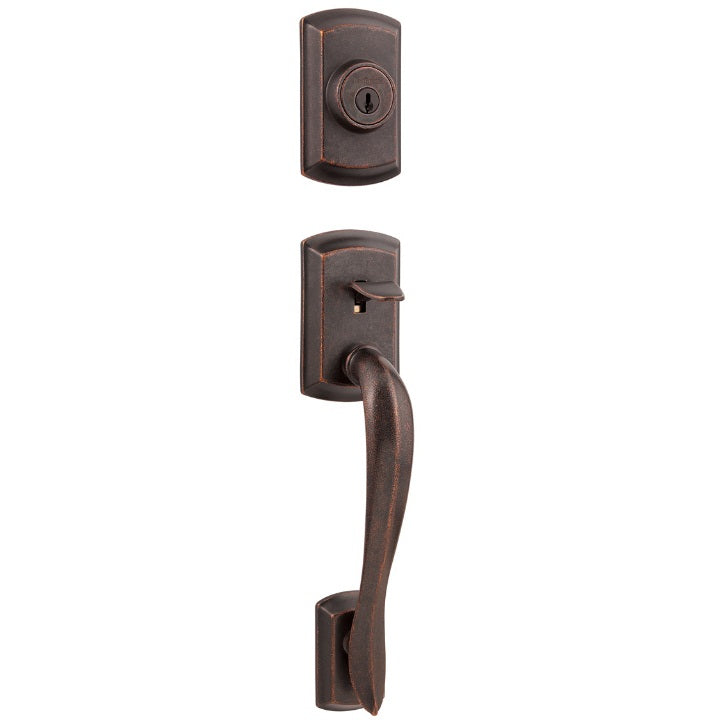

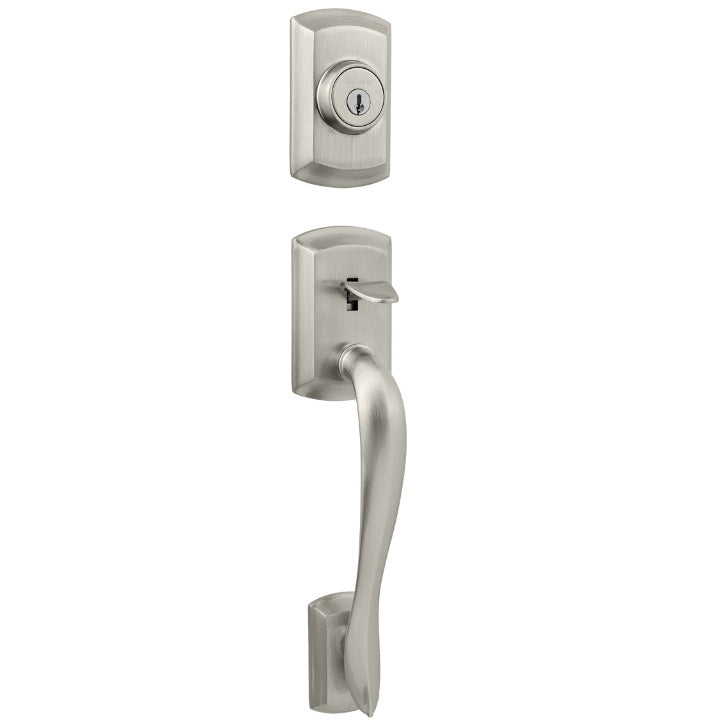

Kwikset Avalon Handleset Specifications

2 3/8" - 2 3/4" adjustable backset Full 1" throw deadbolt with hardened steel rod insert - prevents sawing 6-Pin Cylinder Fits door thickness of 1 3/4" Fits doors prepared with standard 2 1/8" bore hole with 1" cross bore. 5-1/2" Center to Center

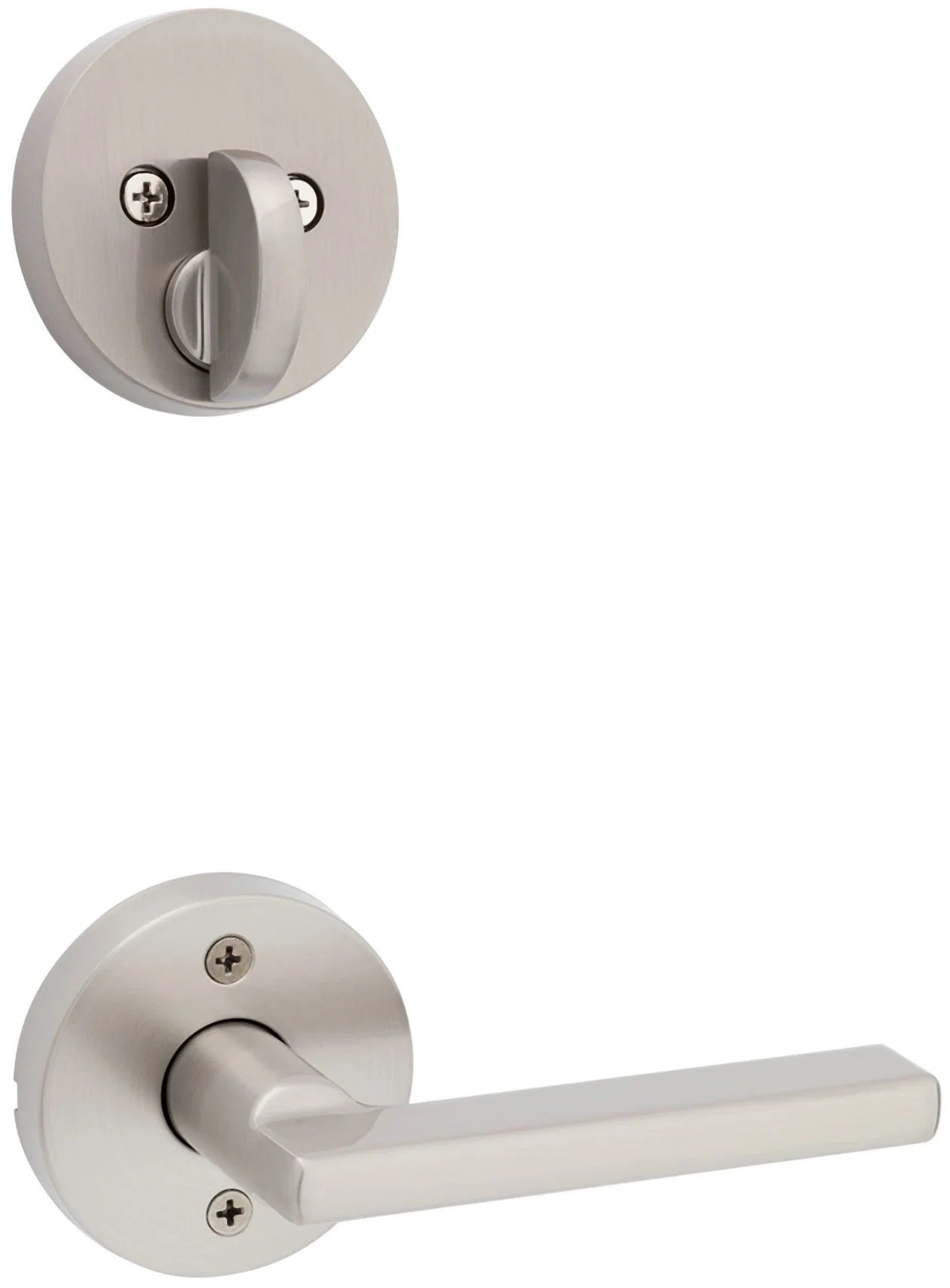

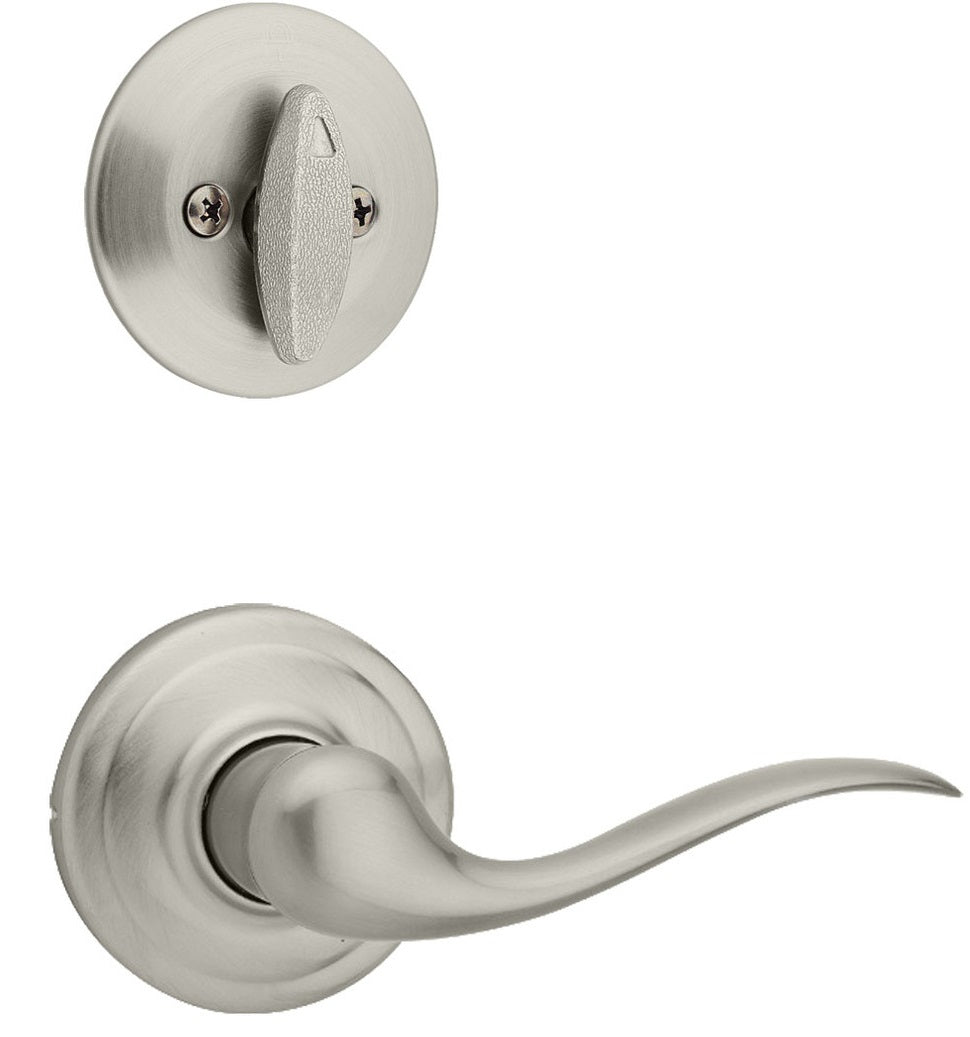

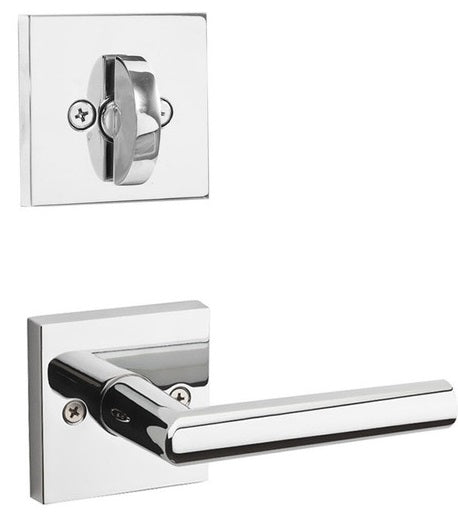

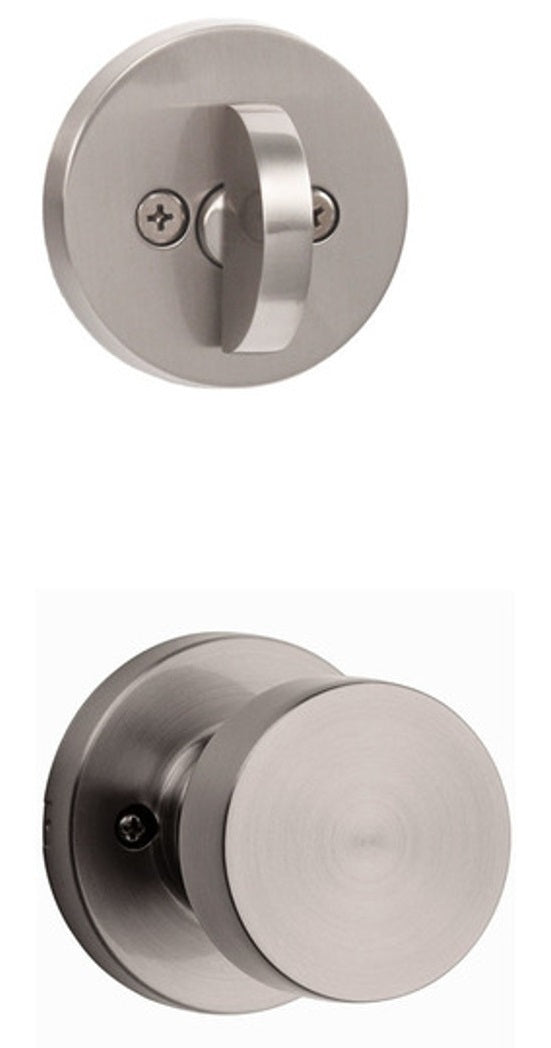

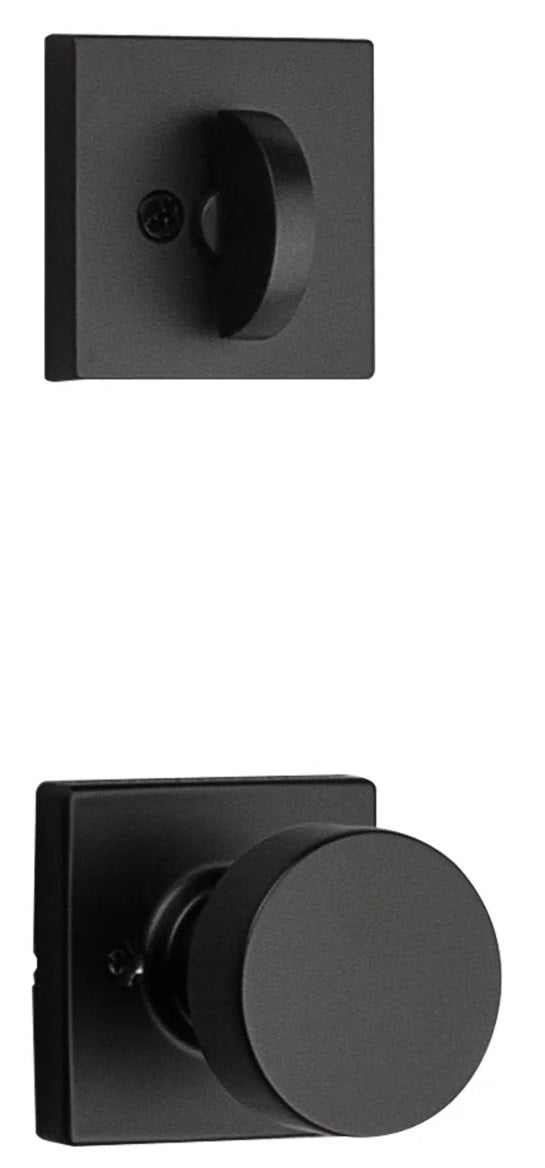

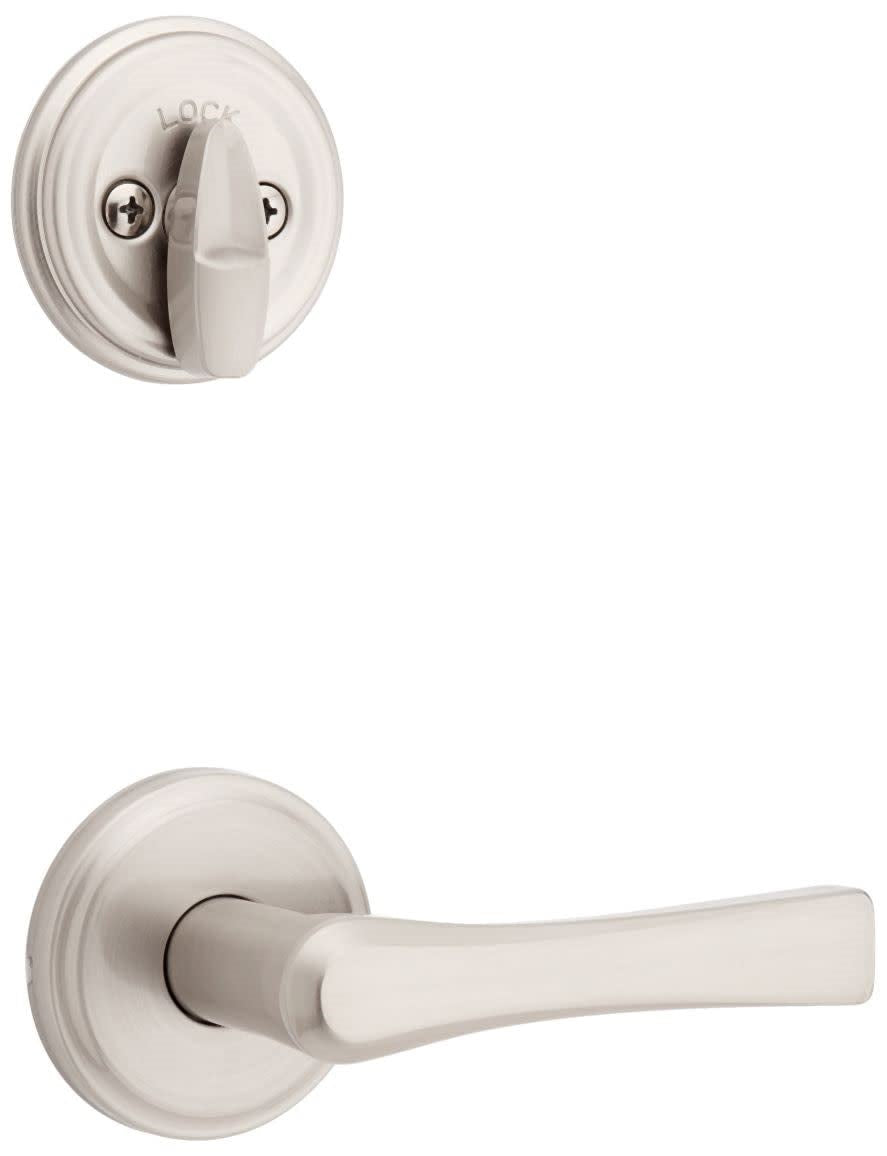

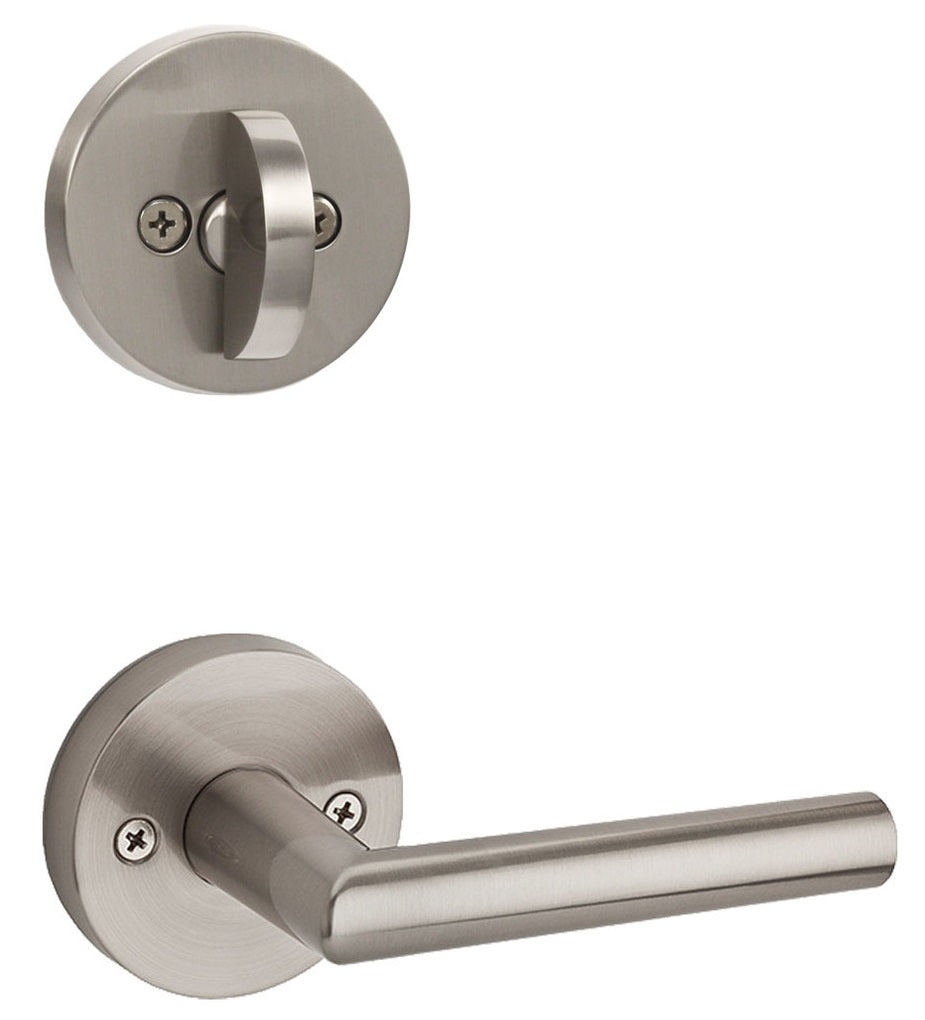

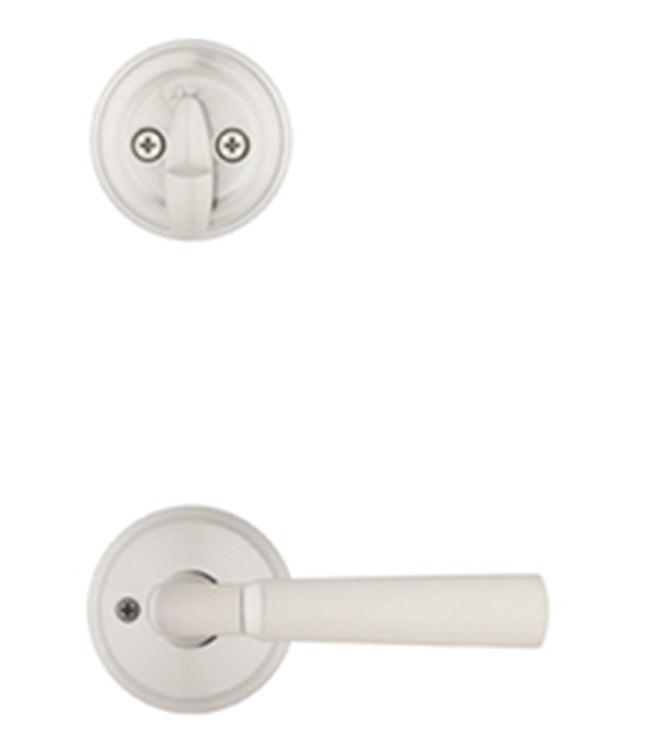

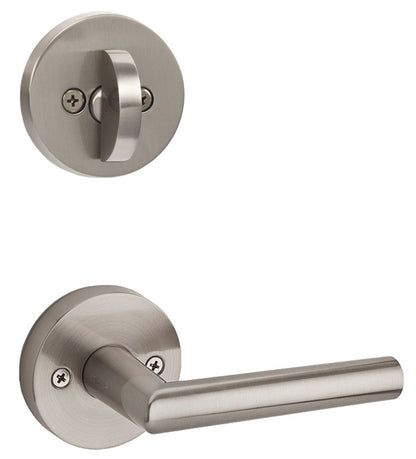

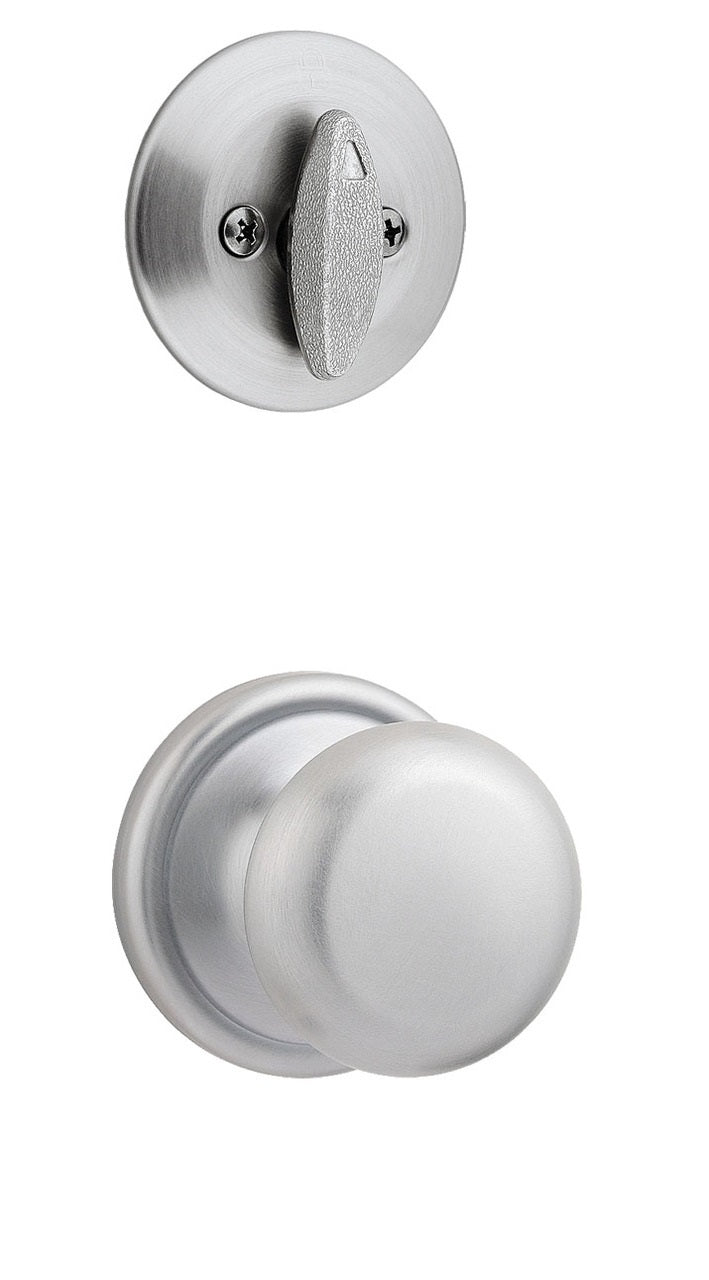

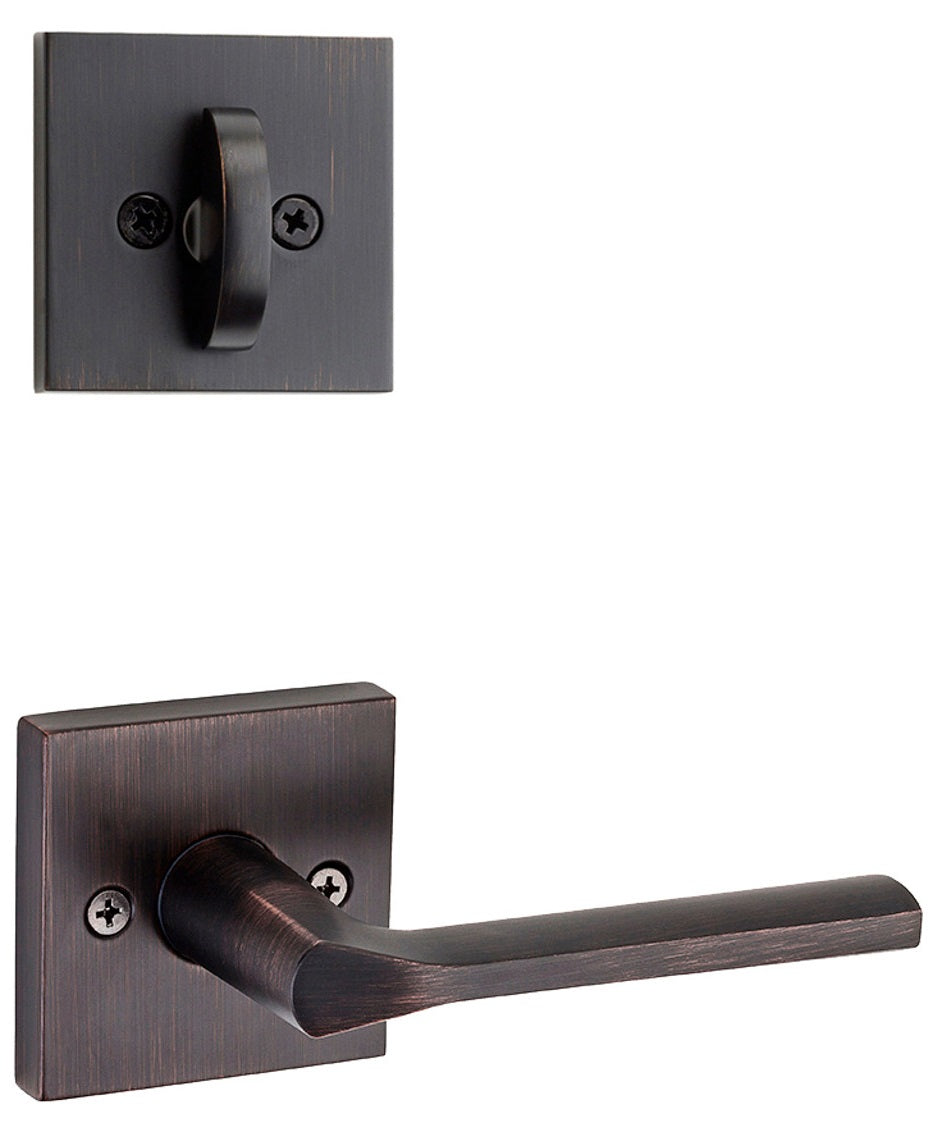

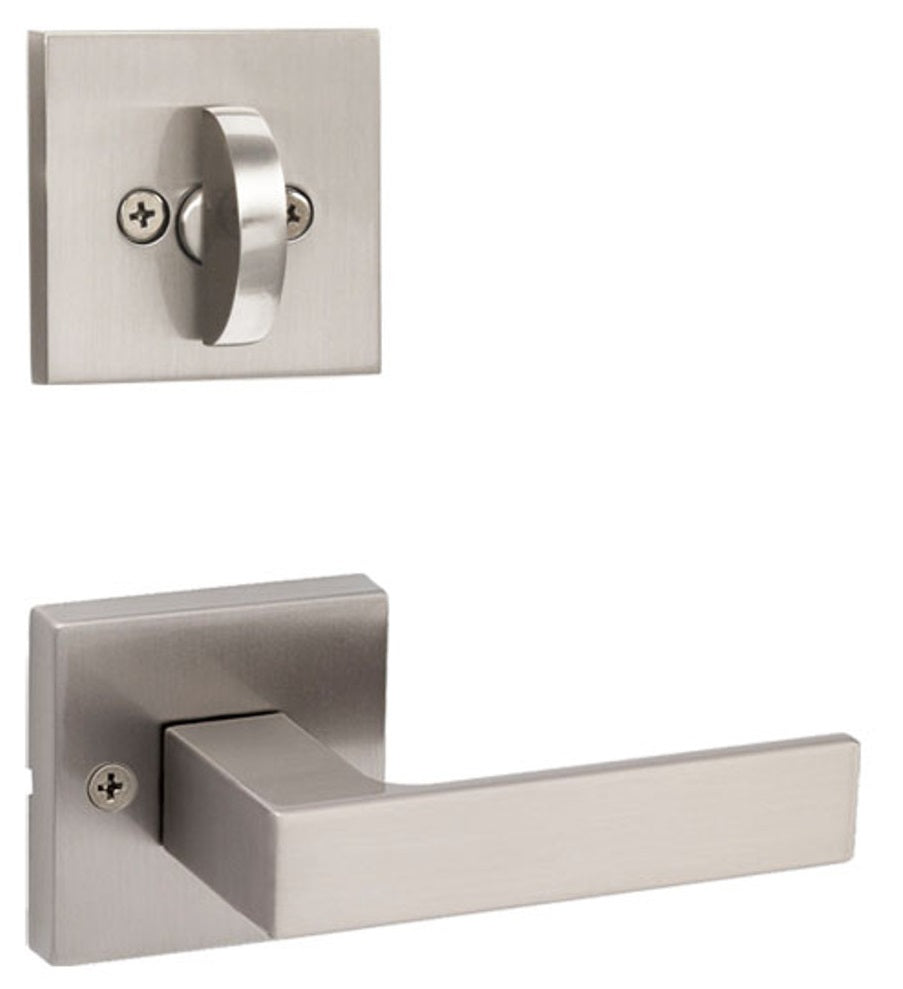

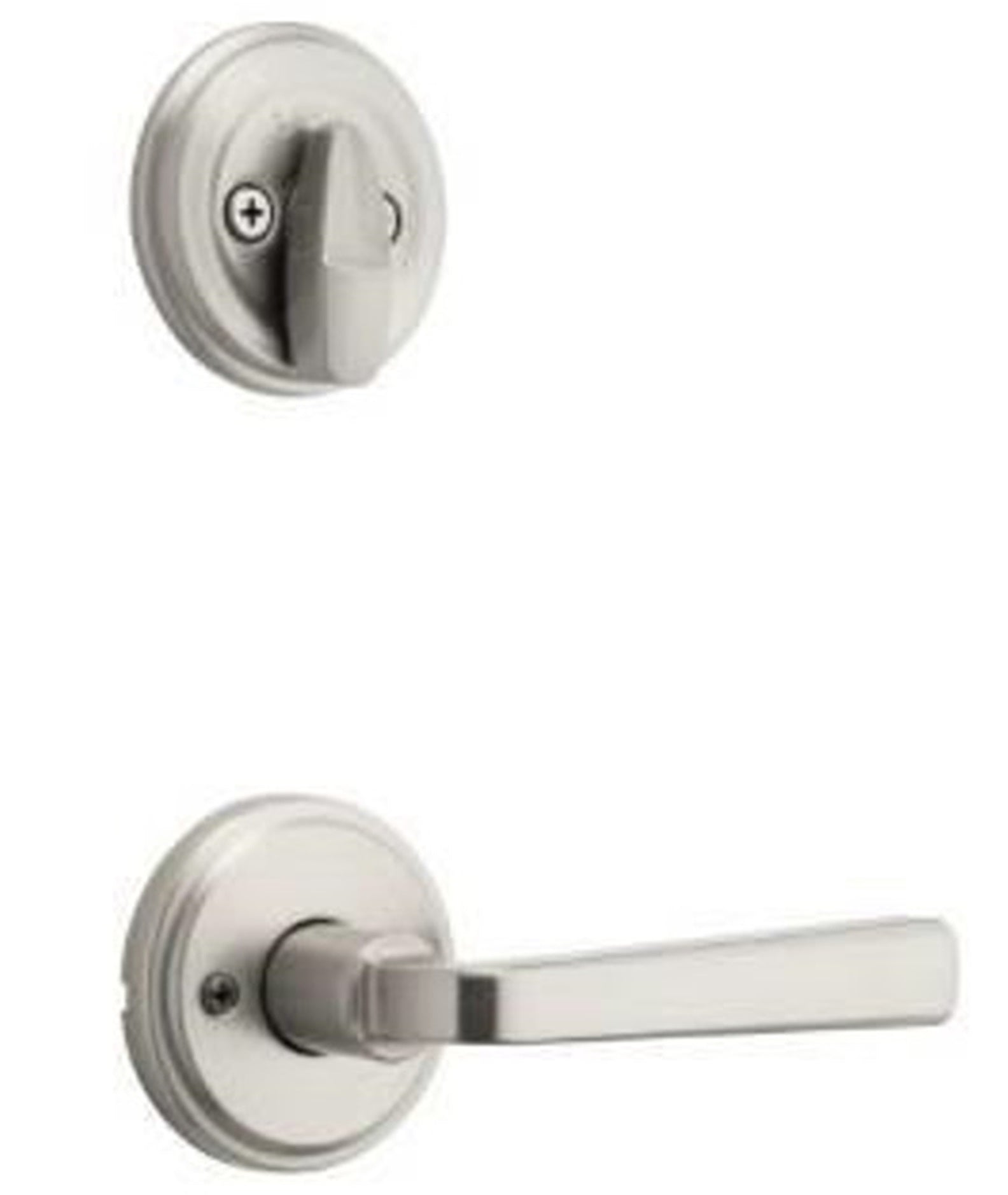

Interior Knob/Lever Options:

Knob/Lever Polished Brass Antique Brass Venetian Bronze Satin Nickel Antique Nickel Polished Chrome Satin Chrome Rustic Bronze Rustic Pewter Iron Black Abbey Knob • • Ashfield Lever • • • • • • • • Avalon Lever • • • • • • • • Brooklane Lever • • • Cameron Knob • • • Circa Knob • • • • • Commonwealth Lever • • • • • • • • • • Copa Knob • • • • • Cove Knob • • • • • Delta Lever • • • • • Dorian Lever • • • • • • • Hancock Knob • • • • • • • • • • Laurel Knob • • • Lido Lever • • • • • Pembroke Lever • • • • • Phoenix Knob • • • • • Polo Knob • • • • • • • Tustin Lever • • • • • • • Tylo Knob • • • •

NOTE: Knob or lever may have a different backplate style than the round backplate shown depending on the handleset style.

installation instruction
drilling instruction
smartkey instruction
thick door-deadbolt installation
thick door-handleset installation

Other Kwikset Hardware
Kwikset Door Knobs	Kwikset Lever Handles	Kwikset Deadbolts
Kwikset Handlesets	All Kwikset

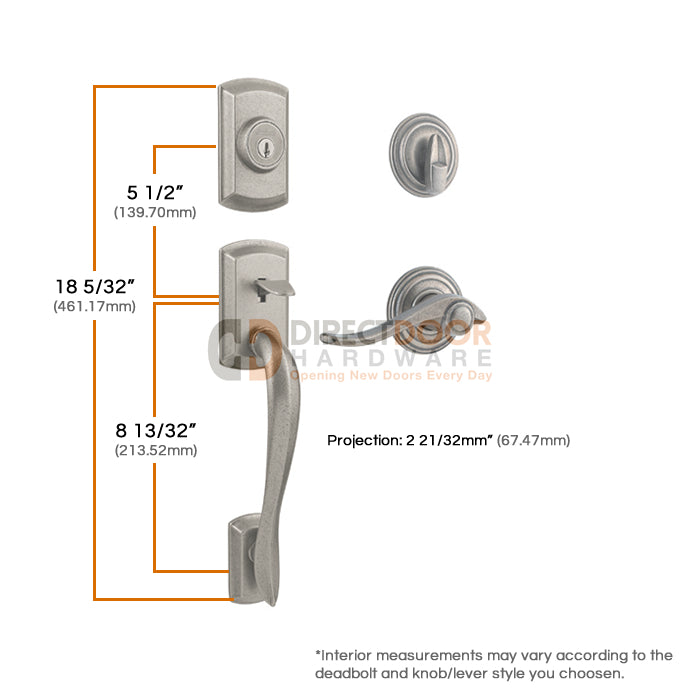

Measurements for Kwikset Avalon Handleset

This Handleset is Available in 2 Functions:

Single Cylinder Handleset
Single Cylinder handlesets are locked/unlocked with a key from the exterior and locked/unlocked from the inside of the home with a thumbturn. (most often used)

Dummy Handleset
If you have a double front door where one side is generally inactive while the other is always active, you will need a combination of two handle sets. For the active side, you'll need a single or double cylinder handleset. For the inactive door, you'll want to order a dummy handleset. This gives you the look of a complete working set, but doesn't have all of the mechanisms - perfect for an inactive door.

Kwikset Product Warranty

Lifetime Mechanical - 10 Year Finish

Warranties cover the original residential user of Kwikset Products against defects in material and workmanship as long as the original user occupies the residential premises upon which the product was originally installed. This warranty DOES NOT COVER abused or misused products or non-commercial products used in commercial applications. A finish deterioration occurring from the use of paints, solvents or other chemicals is not a defect in the finish and is not covered by this warranty.

Kwikset door hardware products can be returned in their original packaging in new condition within 60 days of purchase. Kwikset hardware is subject to a 15% restocking fee.
