Falcon D100-Series Heavy Commercial Deadbolt

Deadbolt locks provide an extra measure of protection against break-in when used as a supplement to an existing lockset. In applications ranging from military and government projects to multi-family housing, retail and restaurants, Falcon deadbolts deliver superior performance and the flexibility of multiple keying systems. Our full line of Grade 1 and 2 auxiliary locks feature interchangeable cores that are compatible with SFIC products from other manufacturers. And they’re backed by Ingersoll Rand, the best name in the business.

Applications - For offices, schools, hospitals, apartments, hotels, motels and other public buildings.

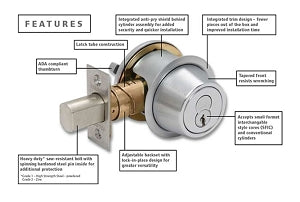

Features for this commercial Deadbolt:
7 functions and 5 finishes: Bright Brass, Satin Brass, Oil Rubbed Bronze, Bright Chrome, Satin Chrome 1" (25mm) projection deadbolt with hardened steel, free-turning saw-resistant insert Nonhanded		Attaches to door with hardened steel through-bolts Integrated anti-pry shield behind cylinder for added security and quicker installation. Adjustable backset with lock-in place design for greater versatility
Specification for this Commerial Deadbolt:
ATTACHMENT: Deadlocks are furnished with deadbolts which have a full 1” projection. Housed within the deadbolt is a free turning hardened steel, saw resistant roller. D100 deadbolt is powdered high strength steel. DOOR THICKNESS: 1-3/8” to 1-7/8”. Up to 2-1/4” door thickness also available. BACKSET: 2-3/8” – 2-3/4” adjustable HANDING: Non-handed STRIKES: 2-3/4” x 1-1/8” lipless strike standard. ANSI 4-7/8” x 1-1/4” lipless, 2-1/4” full lip, 2-3/4” x 1-1/8” T-strike, security strike also available.		CONSTRUCTION FEATURES CYLINDERS: Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Also available with 7 pin cylinders. Available with 6 or 7 pin interchangeable cores. Furnished with two nickel silver keys standard. KEYWAYS: ‘G” keyway standard on conventional cylinders. ‘A” keyway standard on I/C core cylinders. Also available with some optional keyways. EXPOSED TRIM: Wrought brass or bronze reinforced with steel insert. CERTIFICATION: ANSI/BHMA: A156.5,2001,Grade 1
	Meets ADA requirements. Specially designed for barrier free application.		Conforms with ANSI A156.2. Series 4000, Grade II Exceeds 800,000 Cylces. Meets A117.1 Accessibility Code.

Falcon D100 Door Preparation

Click to Enlarge

Not Sure Which Function You Need?

Commercial door hardware is available in several functions to meet the requirements of your application. Below is an explanation of each function available in this deadbolt. To order levers or knobs check out the related products.

EXAMPLE		USE OR FUNCTION
		Classroom Function - Deadbolt thrown or retracted by key from outside. Inside turn will only retract bolt. Bolt automatically deadlocks when fully thrown.

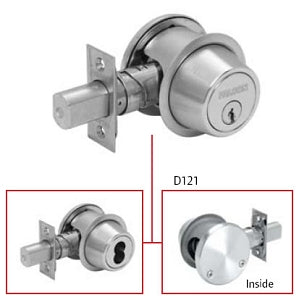

		Single Cylinder x Rose - Deadbolt thrown or retracted by key only. Blank plate inside. Bolt automatically deadlocks when fully thrown.
		Double Cylinder - Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown. *Caution - Double cylinder locks on egress doors in residences are a life safety hazard in an emergency and their use is not recommended.
		Single Cylinder x Thumbturn - Deadbolt thrown or retracted by key or thumbturn. Bolt automatically deadlocks when fully thrown.
		Thumbturn x Thumbturn - Deadbolt thrown or retracted by thumbturn unit from either side. Application for tornado shelters. Bolt automatically deadlocks when fully thrown.

STANDARD FEATURES FOR FALCON D100 DEADBOLT

Falcon Hardware Warranty

Falcon Door Hardware warrants its mechanical offering of locks, exit devices and door
controls products manufactured to be free from defects in materials and workmanship for
a period of TEN (10) YEARS from the date of manufacture with the exception of the
products detailed in the complete Falcon door hardware warranty.
