Falcon 25-Series Exit Device

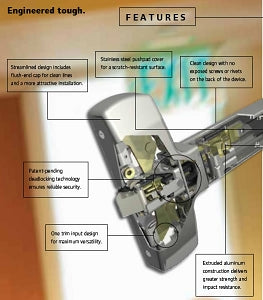

Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse. The new Falcon 24 Series and 25 Series exit devices fill the bill with some of the toughest, most reliable performance in the business. A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and a choice of wide (25 Series) and narrow stile (24 Series) device applications means a smart solution for your building design, as well as its use. And since they’re backed by one of the best names in the business, you can be sure you’re getting the utmost value, reliability and durability.

Applications - For offices, schools, hospitals, apartments, hotels, motels and other public buildings.

Specification for this Exit Device:
Hand: Non-handed. Functions: 24-EO (Exit Only) has all functions built in. Order trim with the device, or add it later. Finishes: US3 (605); US4 (606); US10 (612); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN. (See page 29 for finishes.) S trikes: 299 strike standard. Latchbolt: Stainless steel, 3/4” throw. Deadlocking Latchbolt: Optional. Specify “DL” prefix. Dogging Feature: 1/2 turn hex dogging standard. No threaded parts to wear out. Cylinder Dogging: Specify “CD” prefix. Uses 11/8” long mortise cylinder with standard cam. Stock Sizes:3' and 4'		Electric Function: Can be interfaced with building security systems. Latch retraction, security monitoring, electric dogging, delayed egress and exit alarm available (EL and ED fail- secure only). Subject to code requirements, state and local. (See pages 33-41 for details.) Fasteners: All mounting screws are concealed. Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 4 - 425 (#I0-24) SNB and 2 - 325 (1/4-20) SNB. For devices with trim, specify 4 - 425 (#I0-24) SNB. ANS I: Certified ANSI A156.3-2001 Grade 1 standards. Center Case & Working Parts: Wrought steel with heavy wrought and sintered metal parts. Shim Kit: For glass lite applications; 1/4”thick, specify SK24-R. Projection: 23/4” maximum, 2” dogged. Mounting Height: 40” from CL to finished floor. Doors: 13/4” thick, wood or metal. Specify thickness if other than 13/4”.
			Conforms with ANSI A156.3-2001 Grade I standards.

Not Sure Which Function You Need?

Commercial door hardware is available in several functions to meet the reruirements of your application. Below is an explanation of each trim function available for the 19-series exit device. Please call us if you would like help with ordering commercial hardware 1-307-886-9449 were here Mon. - Fri. 9-5 Mountain Time.

EXAMPLE		USE OR FUNCTION
		710NL-Control Trim Night latch control. Key retracts latchbolt. Key removable only when locked. Projection 2-1/4, total height 11-3/4".
		710TP-Control Trim Thumb piece control. Key locks or unlocks trim. Thumbpiece retracts latch bolt when trim is unlocked.
		710DT-Control Trim Entrance by trim when actuating bar is dogged down.
		712L/NL-Control Trim Entrance by lever only when released by key. Key removable only when locked.
		712L-Control Trim Lever control. Entrance by lever. Key locks or unlocks lever.

Falcon Hardware Warranty

Falcon Door Hardware warrants its mechanical offering of locks, exit devices and door
controls products manufactured to be free from defects in materials and workmanship for
a period of TEN (10) YEARS from the date of manufacture with the exception of the
products detailed in the complete Falcon door hardware warranty.
