Cavity Sliders Full Heigth Ceiling Mount Track

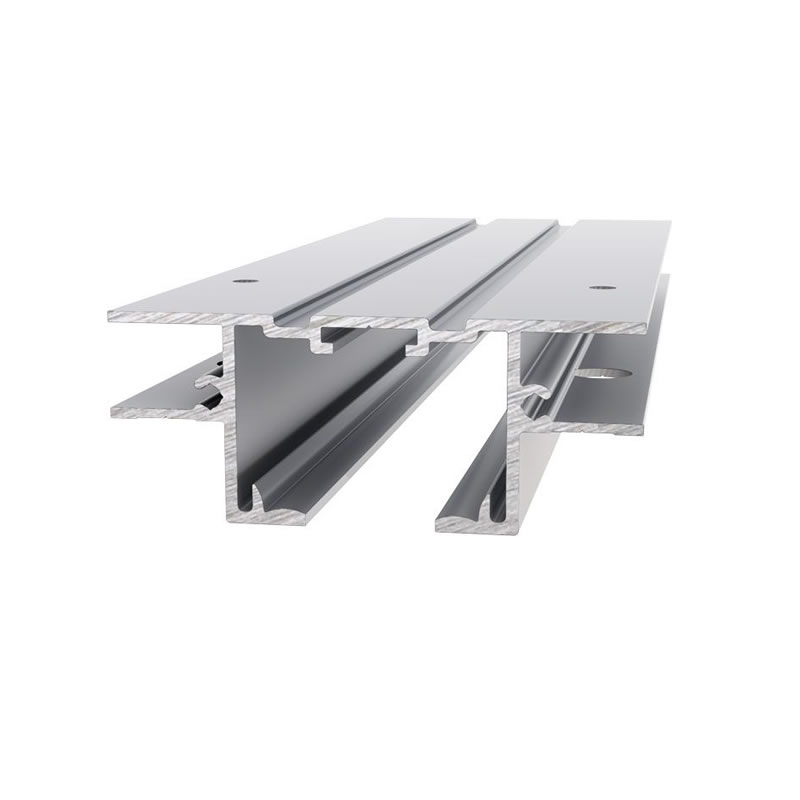

CCavity Sliders Full Height Ceiling Mount Track is supplied with full length fins that enable the ceiling lining do be fixed flush with the underside of the track. This ensures tthe continuation of the ceiling-line through where the door slides. The track can also be painted to match the ceiling color. FH-CeilingMount track is a versatile, high quality sliding door track system for quiet, smooth operating sliding doors.
Product features include:
- Suitable for large room dividers or surface sliding applications.
- High quality, heavy duty extruded aluminum track
- Smooth running track.
- Track is notched for simple carriage installation
- Available in 6,8,12, and 24' length. Can be cut to custom length if needed
- Order with your choice of high quality carriage pack to accommodate up to 500lb door
- Soft close and soft open upgrade is available for silent operation
Easy to order. Simply make the following selections and add to your cart.
 |
1. Select the length of track you need. A sliding door requires a track that is double the width of the door being used. A 3' wide door will need a 6' track. The heavy duty track comes in 6, 8, 12, and 24' lengths. The track can be cut to a custom length on site, or you can call us to order a pre-cut custom length. We ship track up to 8' long with UPS. Tracks longer than 8' will be shipped freight. | |
 |

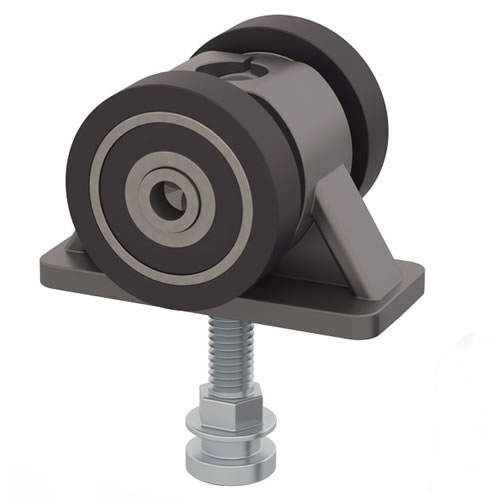

2. Choose the appropriate carriage pack. The carriage packs include the roller carriages, mounting plates, and fasteners needed to attach to the top of your door. Installation instructions are also included. The standard M6 carriage pack is suitable for doors weighing up to 200lb. Most standard size solid core doors weigh less than 150lbs. Larger or thicker doors can be much heavier. The M8 carriage pack is for heavy doors weighing up to 500lbs. The SofStop soft closing carriage packs are also available. The single action SofStop mechanism engages the door a few inches before it is fully closed and slowly draws the door to the jamb for a smooth and silent operation. The Sofstop upgrade can be added for doors up to 176lb, or doors up to 264lb. The double action SofStop mechanism works the same as the single action, but it dampens the motion of the door when it is being opened, and when it is being closed. The double action SofStop mechanism will work for doors up to 176lb weight. |
CaviTrack Installation Instructions
CaviTrack Specifications Sheet
CaviTrack Components Detail
Measurements
Cavity Sliders Ceiling Mounted Sliding Door Track Dimensions
Warranty Information
View Cavity Sliders Warranty Document There is a 25% restock fee on all Cavilock products. If items are returned that have been installed, used or abused there may be a higher restock fee assessed or no credit issued. If you need to return an item, please repack the door hardware in it's original packaging to assure that it arrives undamaged. For more return information see our Direct Door Hardware Returns Page. Before returning any Cavilock Door Hardware, please contact us for a return authorization number.
