Baldwin Images Wave Lever Specification

SOLID FORGED BRASS: Images knobs, levers, and roses are manufactured of solid forged brass for maximum strength and durability. LATCHES: Images latches are constructed for exceptional durability and smooth operation. The heavy latch bolt springs are performance tested to eliminate lever sag. All latches are reversible to accomodade all door conditions. FACEPLATE: Latches are supplied with a 1"(25mm) faceplate. STRIKE: Latches are supplied with a full lip strike. Other strikes are available at an additional charge. FUNCTIONS: Five (5) functions are available: passage, privacy, full dummy, half dummy, and keyed entry. Privacy function has a locking push button feature with automatic release on the interior door trim and an emergency release feature on the exterior door trim. Passage privacy and deadbolt functions must be specified 2-3/8" or 2-3/4" backset. All keyed entry locks are provided with an adjustable backset latch for 2-3/8" or 2-3/4" backset. ROSES: Images roses are designed to conceal a 2-1/8"(54mm) pre-drilled door condition BOLT: Deadbolt and latch bolt are constructed of solid brass. Deadbolt has 1" (25mm) throw when extended and a hardened steel insert for maximum protection and security. Latch bolt has a 1/2"(13mm) throw when extended to fully engage the door jamb. CONCEALED MOUNTING: Images knob and lever sets offer a concealed mounting system. There are no fasteners visible to accumulate dirt and debris. EASY INSTALLATION: The single set screw design facilitates quick and secure installation. Since the screw does NOT carry any torque, there is no tendency for the knob or lever to loosen on the spindle. The spindle is designed to eliminate any problems in locating the trim for 1-3/8" or 1-3/4" thick doors. Knobs or levers simply slide onto the spindle which is drilled to receive the set screw. GRAPHIC INSTRUCTIONS: Images latch sets are designed for easy installation. The graphic instructions make installation easy and are included with each set. DOOR THICKNESS: Images lock sets fit 1-3/8"(35mm) or 1-3/4"(49mm) doors. KEYING: All keyed entry products are available keyed alike. KEYED ENTRY: EMERGENCY EXIT ENTRANCE SET: Keyed knob or lever which retracts the latchbolt when the knob or lever is turned. The door will remain locked from the exterior. STANDARD EXIT ENTRANCE SET: Keyed knob or lever must be unlocked prior to exit. Door will remain unlocked from the exterior unless locked with a key. Installation Guides: Product Specifications Sheet: Passage/ Privacy Guide   Passage/ Privacy

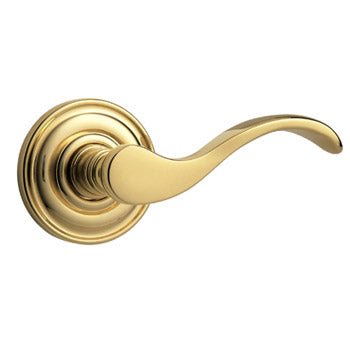

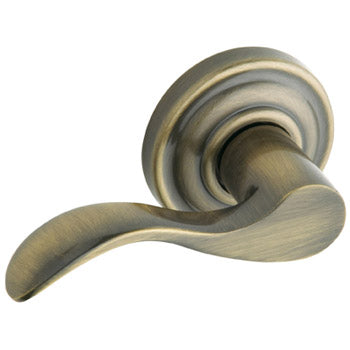

Available Finishes 003 Lifetime (PVD)Polished Brass 030 Polished Brass 031 Non-Laquered Polished Brass 050* Satin Brass and Black 055 Lifetime (PVD) Polished Nickel 056 Lifetime (PVD) Satin Nickel 102 Oil Rubbed Bronze 112* Venetian Bronze 150 Satin Nickel 151* Antique Nickel 190 Satin Black 260 Polished Chrome 264 Satin Chrome 402 Distressed Oil Rubbed Bronze 412* Distressed Venetian Bronze     452* Distressed Antique Nickel     * Hand-relieved finish variances: Product finishes which are HAND-RELIEVED may vary in luster, hue and appearance as a result of handcrafted variances in the final finishing step.

Baldwin Wave Lever Functions

Baldwin door knobs are available in several functions. Please review the descriptions below so you can order the correct door knob for your application.

	Baldwin Passage or Hall and Closet Doorknobs are used on doors that do not require a locking mechanism. Halls, closets, pantry or laundry doors will generally use a passage knobset. Passage knobs do not have a locking mechanism.
	Baldwin Privacy or Bed and Bath Door Knobs are most often used on Bedrooms, Baths or Office doors where a lock for privacy while occupied is desired, but a keyed lock is not really necessary. Baldwin privacy knobs have a Push button on the rosette or backplate as shown to the left to activate the lock. On the outside, there is a pin hole for emergency unlocking. Some knobs will have a pin hole inside a circular piece, some just have a small pinhole.
	Baldwin Standard Keyed Entrance Door Knobs are generally used on exterior doors, but sometimes used on interior doors where security is a concern. Baldwin keyed entrance knobs have a turn button lock on the inside knob. On the outside there is a keyed cylinder. If the knob is locked from the inside a key is required for entrance. Keyed knob must be unlocked prior to exit. If you are ordering several keyed locks of the same brand we can key them alike for you.
	Baldwin Emergency Exit Keyed Entrance Door Knobs are generally used on exterior doors, but sometimes used on interior doors where security is a concern. Baldwin keyed entrance knobs have a turn button lock on the inside knob. On the outside there is a keyed cylinder. If the knob is locked from the inside a key is required for entrance. With this function the latchbolt retracts when the knob is turned. The door will remain locked from the exterior. If you are ordering several keyed locks of the same brand we can key them alike for you.
	Baldwin Half Dummy Knobs are sold individually. Dummy knobs do not have a latch or mechanism of any kind. These knobs are surface mounted to a door that has not been bored (large hole cut out) for a doorknob. Dummy knobs are generally used on double doors that use a ball catch at the top to keep them closed so a latch is not required.
	Baldwin Full Dummy Knobs are a full dummy set which includes two knobs - one for each side of an inactive door. Dummy knobs do not have a latch or mechanism of any kind. These knobs are surface mounted to a door that has not been bored (large hole cut out) for a doorknob. This function is commonly used on the inactive side of a french or double door.

What's Included in Your Baldwin Wave Door Lever

Passage Door Lever Contents
A Lever for both sides of the door, latch mechanism, strike plates and mounting screws.

Privacy Door Lever Contents
A Lever for both sides of the door, latch mechanism, generic unlocking tool, strike plates and mounting screws.

Keyed Entrance Lever Handle Contents
A Lever for both sides of the door, latch mechanism, keys, strike plates and mounting screws. If you have several keyed locks keyed alike, there may not be a key for every lock shipped.

Half Dummy Lever
A single non functioning Lever with back plate and mounting screws

Full Dummy Lever
Two non functioning Levers with back plates and solid spindle. Not for use on doors with 2-1/8" bore preparation.
