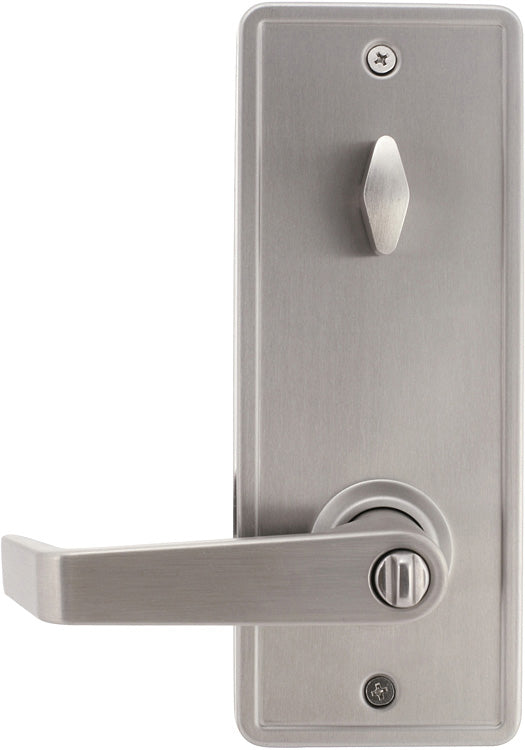

Advantage ILCT 4 Inch CC Interconnected Commercial Leverset

Applications - For offices, schools, hospitals, apartments, hotels, motels and other public buildings.

Features for this commercial lever:
Schlage C Keyway Finishes: US10B (Oil Rubbed bronze) US26D (Satin Chrome) US15 (Satin Nickel) US19 (Flat Black) Functions: Entrance and Passage Fast and Easy Installation		Interconnected Mechanism retracts both the latch and deadbolt from the inside with a single motion Panic Proof Exiting Concealed Mouting Screws
Specification for this Commerial Lever:

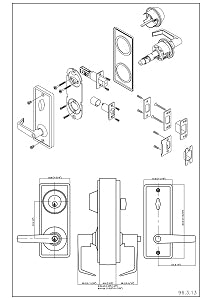

Door ranges: 1 3/8" - 1 3/4" Door thickness 4" CC Door Prep Deadbolt: 1 1/8" x 2 1/8" square corner face plate, 1" housing diameter, 1" throw ANSI Standards - Meets or exceeds requirement of BHMA/ANSI A 156.12, Series 4000 Grade 2, 400,000 Cycles. Exposed trim: Wrought Brass, bronze or stainless steel, levers are zinc casting, plated to match trim finish.		Backset: 2 3/4" (70mm) Standard, or 2 3/8" (60mm) Strike: 2 3/4" x 1 1/8" x 3/32" standard. ASA strike standard. Strike box available upon request.   Keying 6 Pin Tumbler Cylinder, 2 keys per lock. Keying available upon request. keying charge may apply depending on quantity and complexity of keying.
	Meets ADA requirements. Specially designed for Barrier Free Application.		Conforms with ANSI A156.2. Series 4000, Grade II Exceeds 800,000 Cylces. Meets A117.1 Accessibility Code.

Not Sure Which Function You Need?

Commercial door hardware is available in several functions to meet the reruirements of your application. Below is an explanation of each function available in this lever. To order other functions and deadbolts check out the related products.
