Advantage Bala Style CA Commercial Knobset

Applications - For offices, schools, hospitals, apartments, hotels, motels and other public buildings.

Features for this commercial knob:
Schlage C Keyway Finishes:US32D (Stainless Steel)  Available Functions: Keyed, Storeroom,Privacy, Passage and Dummy Fast and Easy Installation		Concealed Mounting Screws Removable through bolt.
Specification for this Commercial Knob:

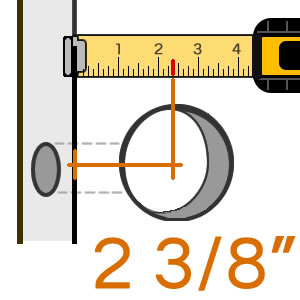

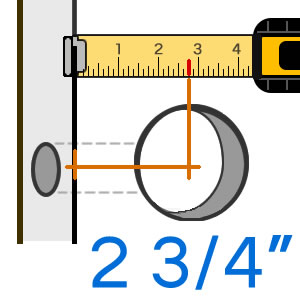

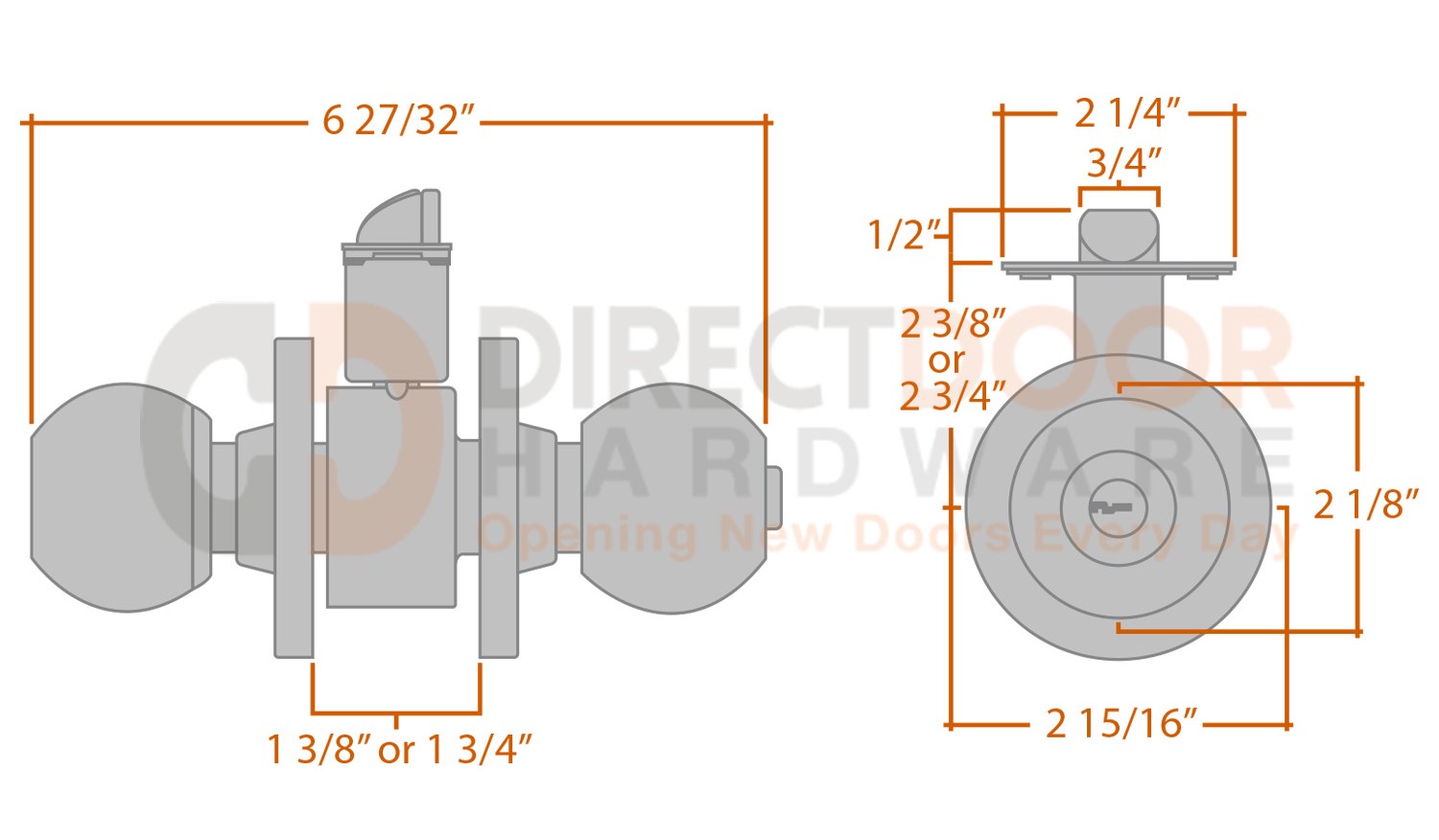

Door ranges: 1 3/8" - 1 3/4" Door thickness (35-51MM) Front: 2 1/4" x 1 1/8", adjustable for beveled doors 1/8" in 2". Latchbolt: 1/2" throw stainless steel latch bolt (12.7 MM) Meet UL 3 Hours fire rating, UL file No. R13776 ANSI Standards - Meets or exceeds requirement of BHMA/ANSI A156.2, Series 4000 Grade 2, 400,000 Cycles. Exposed trim: Wrought Brass, bronze or stainless steel, knobs are zinc casting, plated to match trim finish.		Backset: 2 3/4" (70mm) Standard, or 2 3/8" (60mm) Strike: 2 3/4" x 1 1/8" x 3/32" Standard. ASA strike available upon request. Strike Box furnished. Latch and strike Screws: 8-32 x 1" FPH Dual Purpose Federal Standard: Meets FF-H-106C Keying 6 Pin Tumbler Cylinder, 2 keys per lock. Keying available upon request. keying charge may apply depending on quantity and complexity of keying.
	Conforms with ANSI A156.2. Series 4000, Grade II Exceeds 800,000 Cycles. Meets A117.1 Accessibility Code.

Not Sure Which Function You Need?

Commercial door hardware is available in several functions to meet the requirements of your application. Below is an explanation of each function available in this knob. To order other functions and deadbolts check out the related products.

EXAMPLE		USE OR FUNCTION
		Entrance Keyed Locks - Turn Push button locking. Pushing and turning the button disengages outside lever requiring use of key until the button is manually locked. Push Button Locking - pushing the button disengages the outside lever until unlocked by key or by turning the inside lever. Clutch function is designed to disengage outside spindle from latch when in locked condition.
		Storeroom Lock - Outside lever is always disengaged. Enter by key only. Inside lever is always unlocked. Clutch function is designed to disengage outside spindle from latch when in locked condition.
		Privacy Lock - Inside push button locks outside. Outside unlocked in emergency coin slot. Inside always free (unlocked).
		Passage Set - Both outside and inside always unlocked. No locking mechanism.
		Double Cylinder Knob - Keyed cylinder on both sides
		Single Dummy Door Knobs - Dummy door knobs mount to the surface of the door. This is the perfect solution for ball catch doors or other applications where a latch mechanism is not needed, but the look of a doorknob is desired. Dummy door knobs are used on doors that do not have a bore hole in them already. If your door is prepped with a bore hole, this function will not work.

Keyed, Storeroom, Passage and Privacy Knobsets:
- Two Knobs (one for each side of the door).
- Strike Plate (mounted on the Jamb across from the strike).
- Mounting screws.
- Tubular latch with attached mortise plate.

*Entrance/Keyed knobs also include keys. Larger orders keyed alike may not have keys included with every entrance knobset.

Dummy knobsets:
Single
- One knob and rosette to be surface mounted to the door.
- Mounting screws.

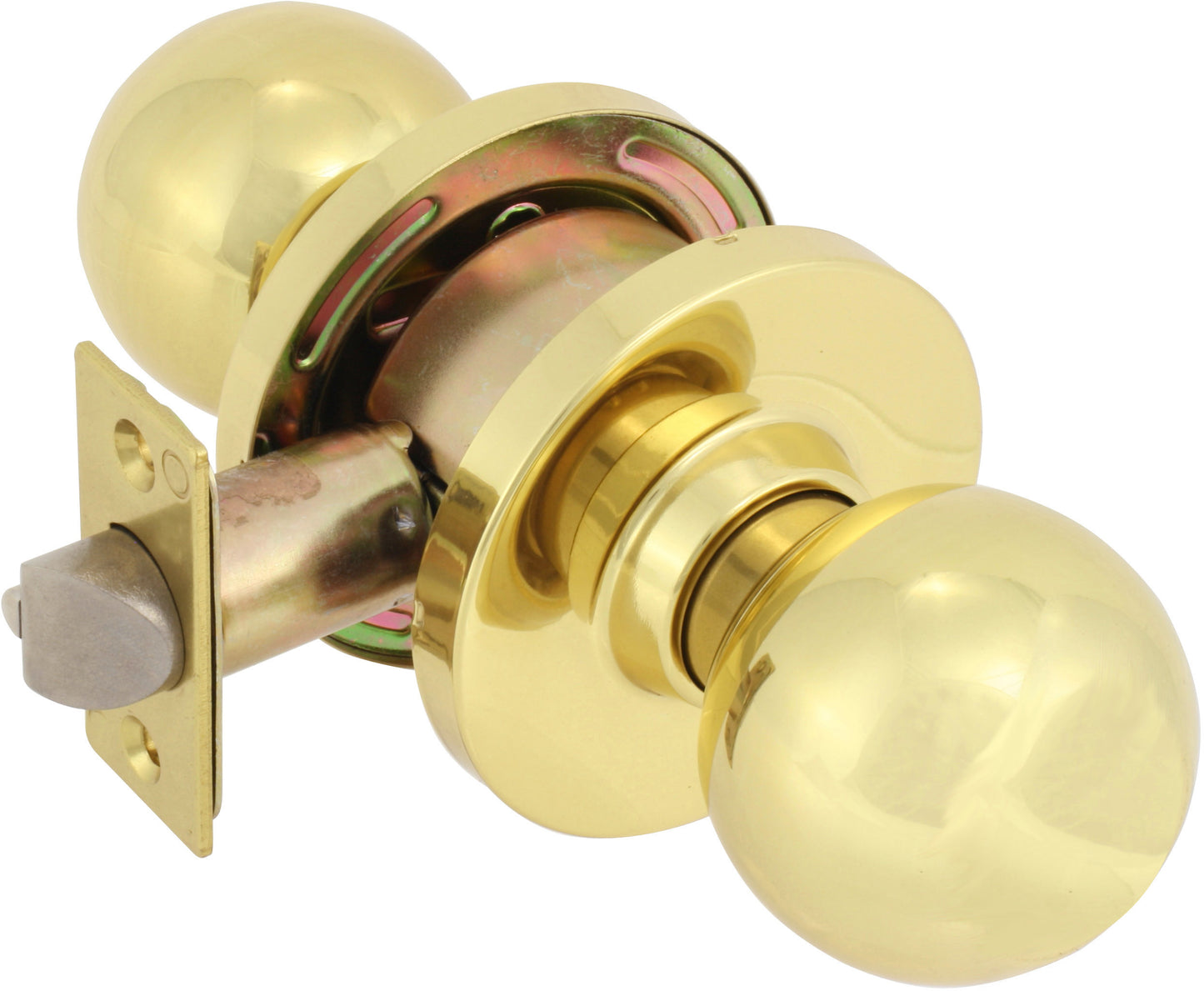

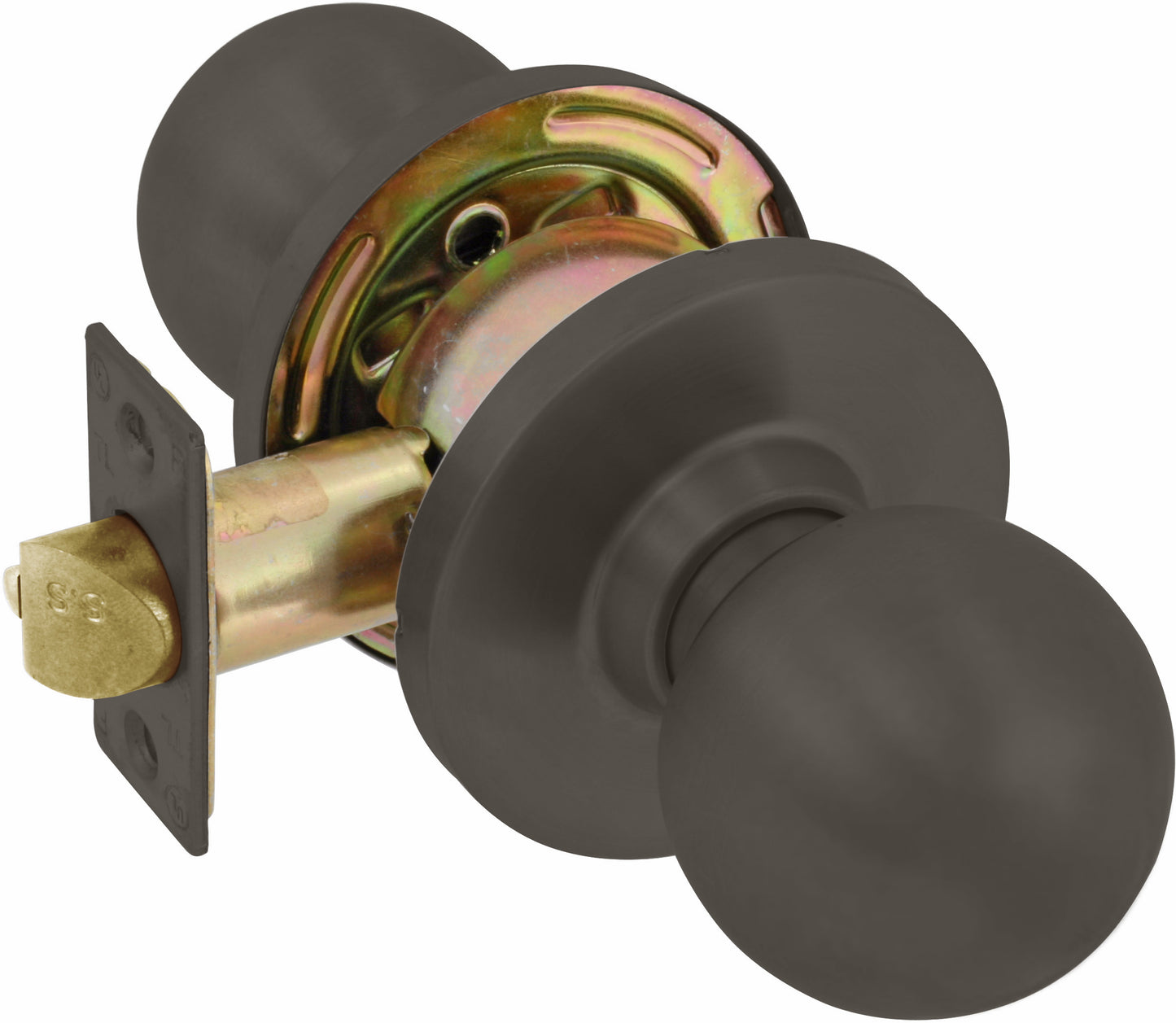

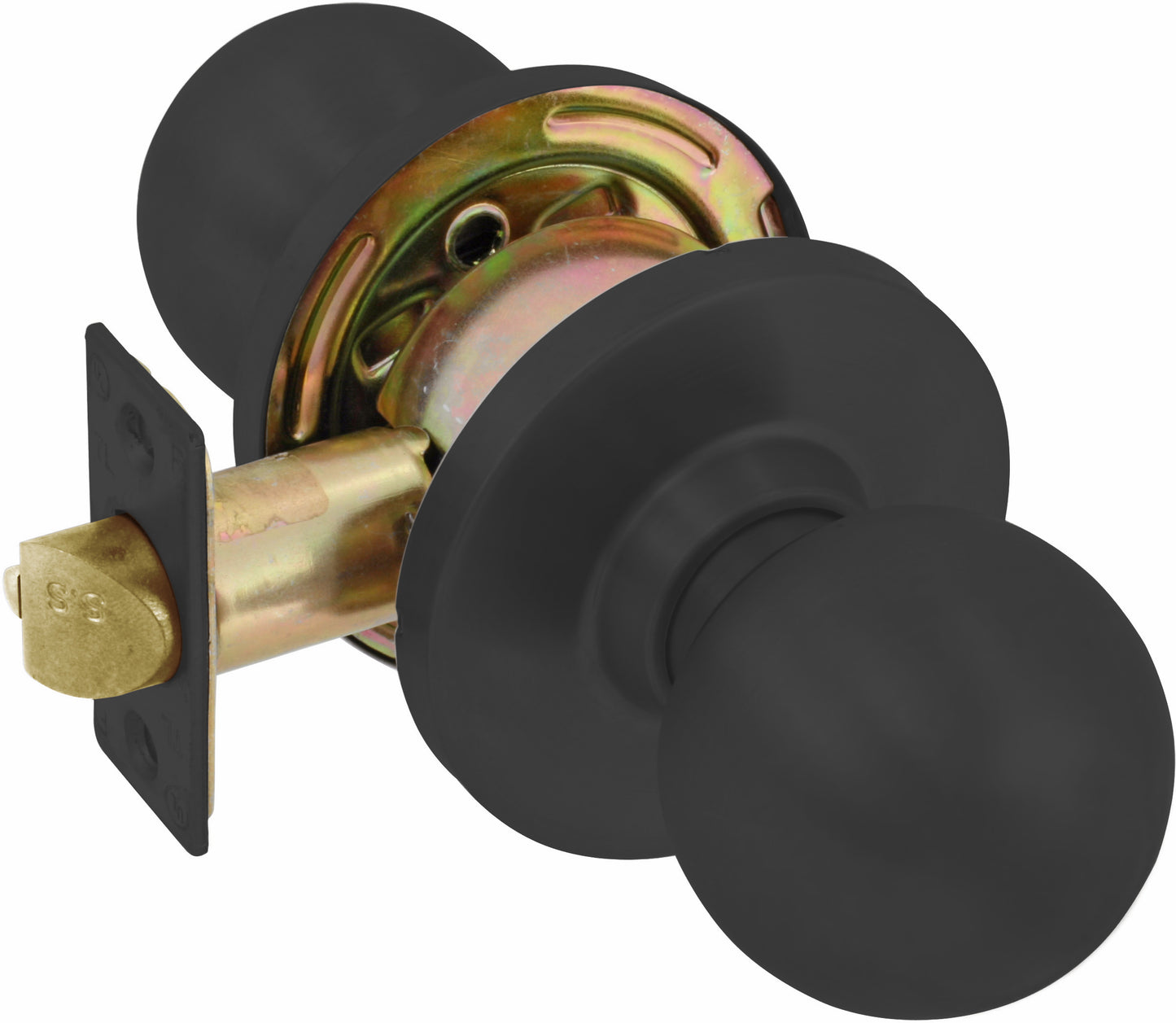

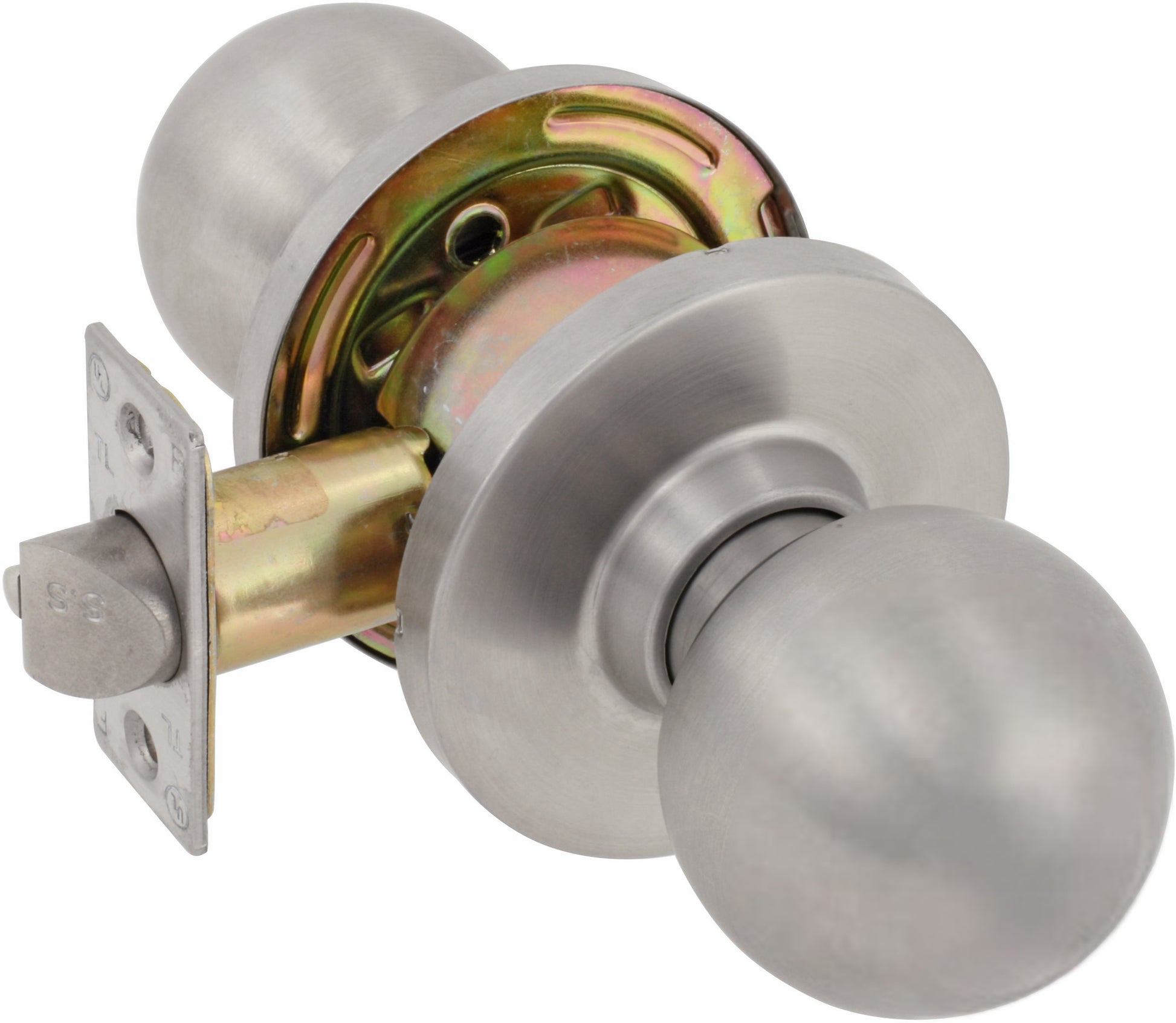

How The Passage Function Works: Non-Locking Lever. Latch Bolt operated by lever or knob from either side at all times.
