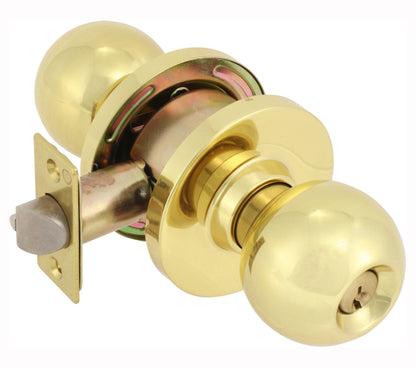

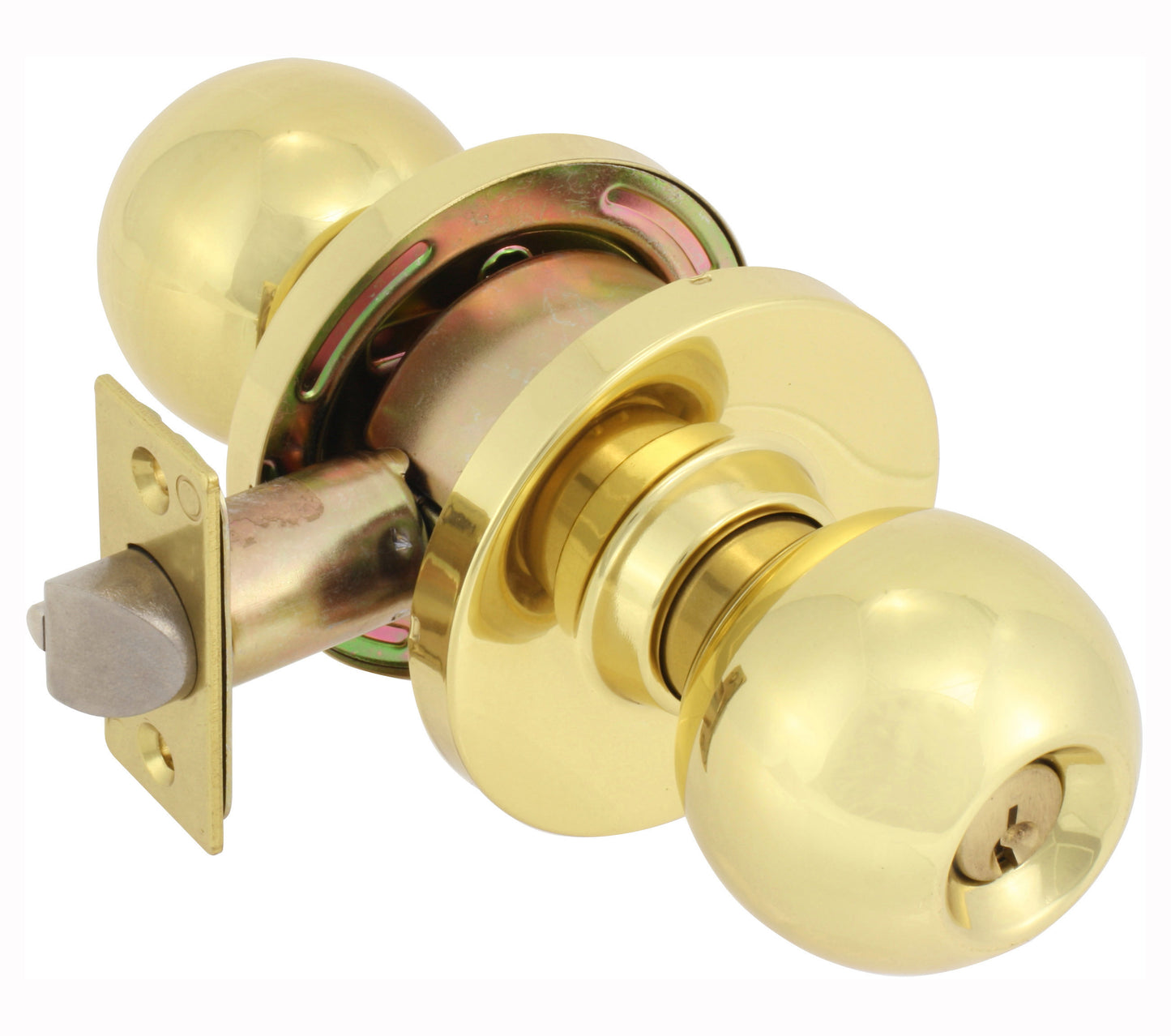

Advantage Commercial Knobset

Applications - For offices, schools, hospitals, apartments, hotels, motels and other public buildings.

Features for this commercial knob:

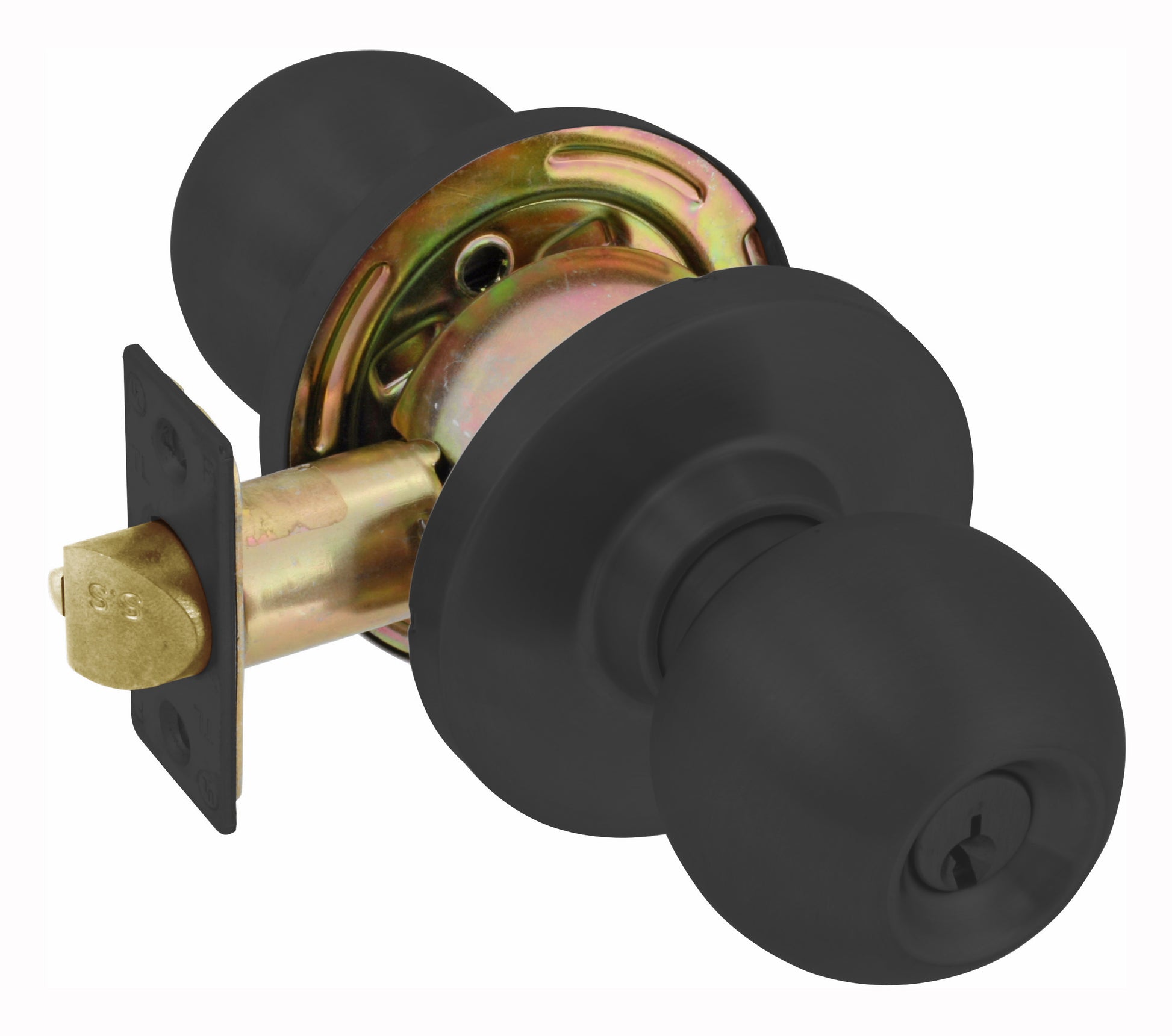

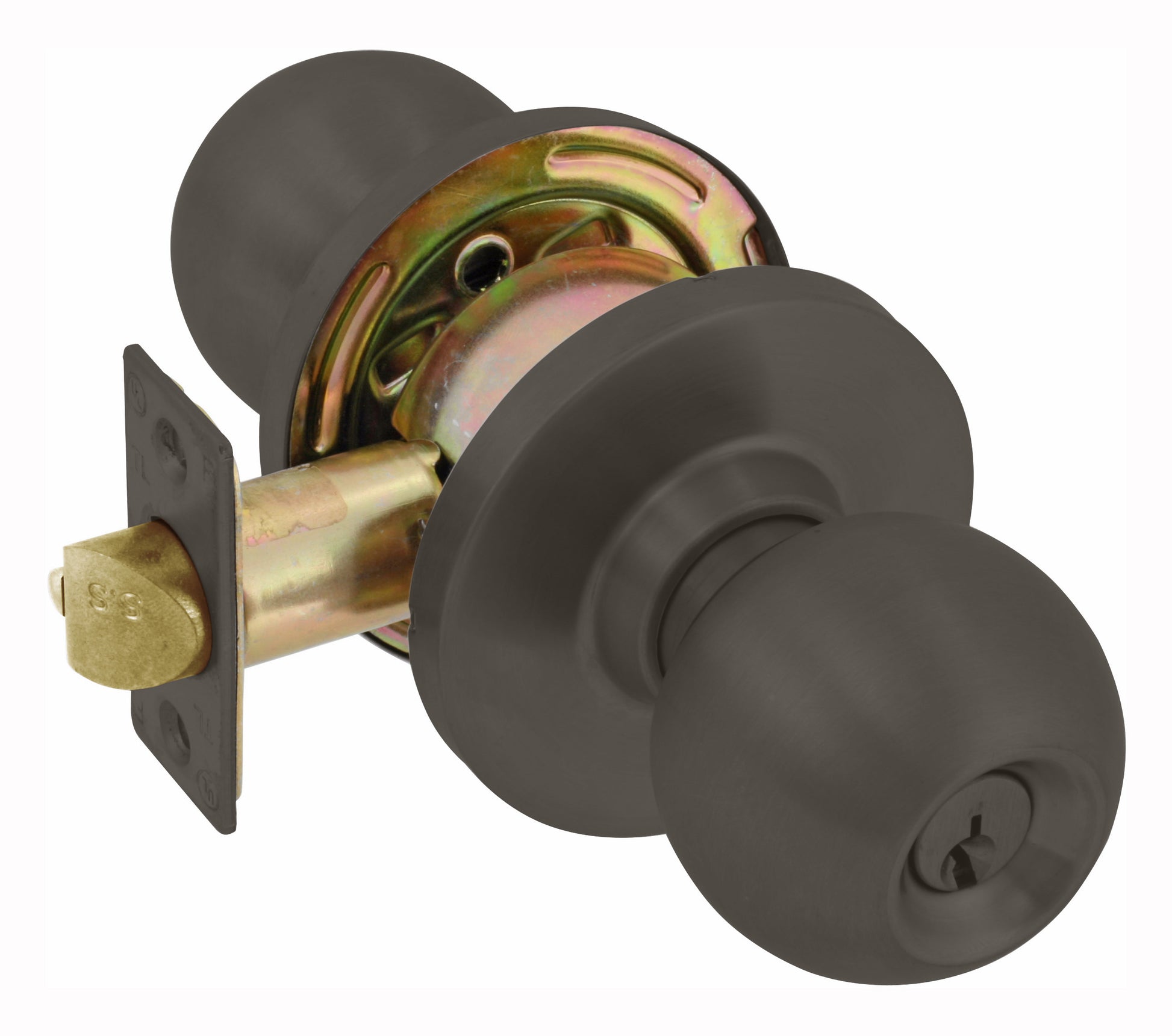

Schlage C Keyway Finishes: US10B (Oil Rubbed bronze) US32D (Stainless Steel) US3 (Polished Brass) US19 (Flat Black) Functions: Keyed, Storeroom, Privacy, Passage and Dummy Fast and Easy Installation		Concealed Mounting Screws Removable through bolt.
Specification for this Commercial Knob:

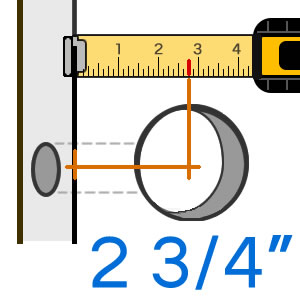

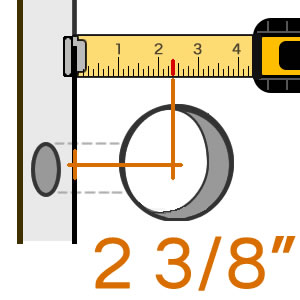

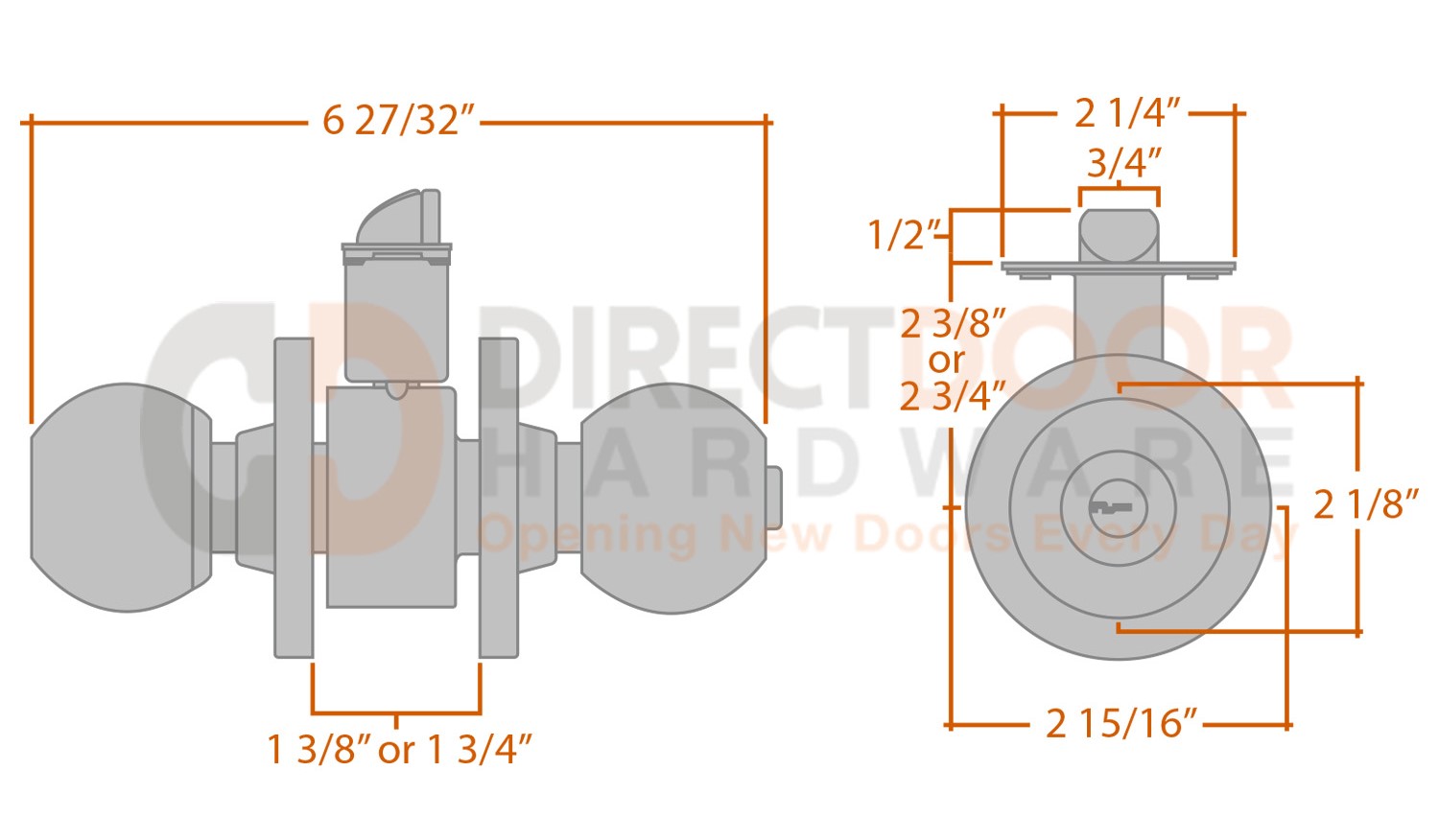

Door ranges: 1 3/8" - 1-3/4" Door thickness (35-44MM) Front: 2 1/4" x 1 1/8", adjustable for beveled doors 1/8" in 2". Latchbolt: 1/2" throw stainless steel latch bolt (12.7 MM) Meet UL 3 Hours fire rating, UL file No. R13776 ANSI Standards - Meets or exceeds requirement of BHMA/ANSI A156.2, Series 4000 Grade 2, 400,000 Cycles. Exposed trim: Wrought Brass, bronze or stainless steel, knobs are zinc casting, plated to match trim finish.		Backset: 2 3/4" (70mm) Standard, or 2 3/8" (60mm) Projection: 2 5/8" (67mm) Strike: 2 3/4" x 1 1/8" x 3/32" Standard. ASA strike available upon request. Strike Box furnished. Latch and strike Screws: 8-32 x 1" FPH Dual Purpose Federal Standard: Meets FF-H-106C Keying 6 Pin Tumbler Cylinder, 2 keys per lock. Keying available upon request. keying charge may apply depending on quantity and complexity of keying.
	Conforms with ANSI A156.2. Series 4000, Grade II Exceeds 800,000 Cycles. Meets A117.1 Accessibility Code.

How Double Keyed Communicating Function Works: - Keyed cylinder on both sides. Each side functions independently from the other. So if one side is unlocked with a key, the other side remains locked.

Warranty Information

How Double Keyed Communicating Function Works: - Keyed cylinder on both sides. Each side functions independently from the other. So if one side is unlocked with a key, the other side remains locked.
