Advantage 9000 Series Door Closer with Regular Arm and Parallel Arm
Advantage 9000 Series Door Closer Features
- Same mounting hole pattern as CAL-ROYAL 900 (CTC 11-1/8” x 1-1/8”), ideal for renovations
- Grade 1 for Heavy Duty Applications
- Heavy Duty Commercial model ideal for high traffic door. Versatile for new constructions, such as schools, hospitals, and public institutions
- BHMA certified
- Adjustable Power sizes 1-6
- Model type 8000
- ANSI grade 2 UL-Listed
- Non-handed, tri-pack for all application
- Includes Self- tapping wood screws, machine screws, and sex-bolts
- Aluminum, Duronotic, and Gold finishes
- Triple valve control for Closing speed, Latching speed, and Back-check cushion Delayed Action valve – Optional (Model: 9000/DA) Staked valve for power adjustment It has a staked valve for power adjustment.
- Ships with a standard arm and parallel bracket with a full plastic cover
- Heavy Duty Cast Iron body, forged steel arm- Heat treated forged steel piston - Double Heat treated Steel pinion

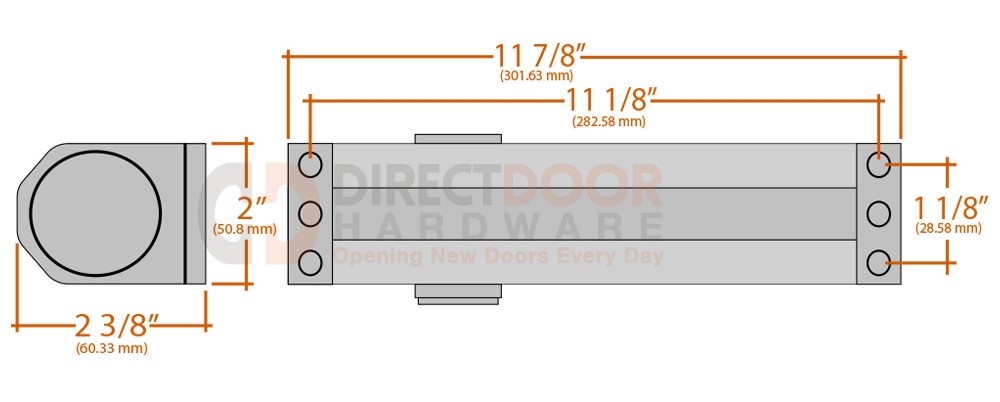

Measurements
