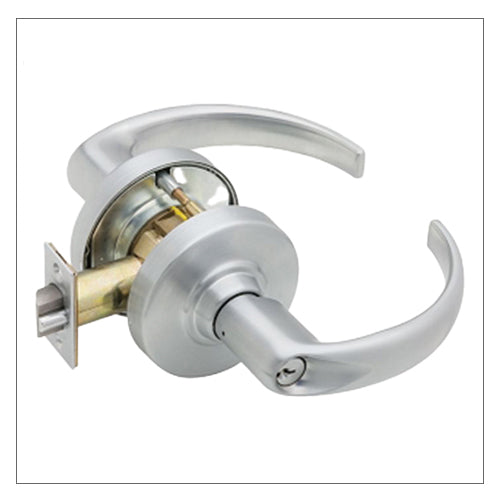

Schlage ND Series Sparta Lever Keyed Entrance Lock

Schalge's ND Series locks have long been one of their best selling locks because they are tough, durable and Grade 1 Rated. Recently Schlage has made these dependable locks even better by simplifying the installation. With these changes Schlage's locks are easier to install correctly the first time, resulting in a longer lasting lock providing peace of mind that every door is safe and secured with a lock built to last.

Schlage's ND series locks are perfect for Schools, Hospitals, Offices, Retail Spaces, Universities, Restaurants and other high traffic applications.

Schlage ND Series Specs

Handing:
ND Series Levers are non-handed.
Door Thickness:
Fits Doors 1 5/8" to 2 1/8" Thick (41MM-54MM) standard including Vandlguard Functions. 1 3/4"-2" for Function ND85. Spacer can be purchased for 1 3/8" doors. Can be special ordered for thicker doors with a 6-8 week leadtime.
Backset:
Must specify backset when ordering. Available in 2 3/4" (70MM) 2 3/8" (60MM) 3 3/4" (95MM) and 5" (127MM)
Faceplate:
Brass Bronze or Stainless steel - 1 1/8" x 2 1/4" (29MM x 57MM) Square Corner, Beveled.
Lock Chassis:
Zinc Plated for corrosion resistance
Latch Bolt:
Steel 1/2" (12MM) Throw, deadlocking on the keyed and exterior functions.
Exposed Trim:
Pressure cast Zinc plated to match symbols on levers. Roses Brass, bonze or Zinc depending on finish.
Strike:
ANSI Curved lip strike 1 1/4" x 4 7/8" x 1 3/16" lip to center standard.
Cylinder and Keys:
6 Pin Everest 29 S123 Keyway Standard with two patented nickel silver keys per lock. Also availabe in large format IC with or without core.
Keying Options:
Key Alike, Master Keying or Construction Keying. Please give us a call for keying costs.
Warranty:
Ten Year Limited warranty for all functions.

Certifications
ANSI
Meets or exceeds A156.2 Series 4000, Grade 1 strength
and operational requirements. Meets A117.1 Accessibility Code
Federal:
Meets FF-H-106C Series 161.
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard) All levers with less than 1/2” (64mm) returns comply; Schlage levers return to within 1/2” of door face.
MEA Certification:
All electrified locking (fail-safe, unlocked by switch or power failures) functions accepted for use in New York City by the City of New York, Department of Buildings (MEA 24-04-E).

All levers with less than 1/2” (64mm) returns comply with California Fire Safety Codes.
Florida Building Commission:
3/4” and 1/2” throw latch approved for Hurricane Resistance with Miami-Dade County, Florida.
UL / cUL:
All locks listed for A label single doors, 4’ x 8’. Letter F and UL symbol.
ADA Compliant:
Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act

Meets ADA requirements.

UL Listed for 3 Hour Fire Door
