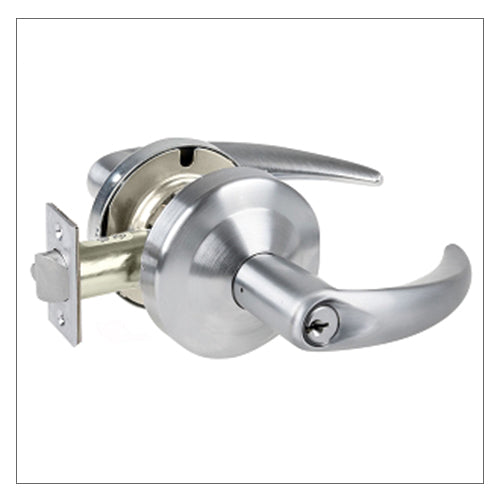

Collection: Schlage ALX Series Omega Levers
No products found
Use fewer filters or remove all
| AL - Series Specifications | AL - Series Door Prep |
| - Applications: Standard duty commercial exterior and interior doors for medical,
office, hotel/motel, public buildings, religious, multi-family,
retail/storefront and government facilities. Also available for heavy duty
residential use. - Certifications: ANSI A156.2, 1996, Series 4000, Grade 2. UL Listed for all functions up to 3-hour doors. - Keying: 6-pin tumbler with two nickel silver keys per lock. Other keying options available from the factory include master keying, grandmaster, keying, and construction keying. Interchangeable core available in Saturn design only. Classic Primus® and Everest Primus® are also available. - Door Range: 1 3/8" - 1 7/8" (35 mm - 48mm) standard. 1 7/8" - 2" (48 mm - 51 mm) regular parts assembled to order. - Backset: 2 ¾" (70 mm) standard. 2 3/8" (60 mm) and 3 ¾" (95 mm) backset latches available. 5" (127 mm) backset links also available. - Exposed Trim: Wrought brass or bronze. Levers are pressure cast zinc, plated to match finish symbols. |
 |
| AL - Series Latches & Strikes | |
| - Standard latches and strikes have adjustable brass or bronze faceplates,
furnished in compatible lock trim finish. - Latches: 1 1/8" x 2 ¼" (29 mm x 57 mm), ½" (13 mm) throw standard. 1" (25 mm) wide faceplates available. Circular drive-in, ¼" (6 mm) radius round corner springlatches and deadlatches are also available. - Strikes: ANSI 1 ¼" x 4 7/8" (32 mm x 124 mm) strike, 1 3/16" (30 mm) lip standard. Square corner, 1 1/8" x 2 ¾" x 3/32" (29 mm x 70 mm x 2 mm) T strike with 1 1/8" (29 mm) lip, furnished with dust box, available. Optional lip lengths 1" - 2" (25 mm - 51 mm) available. |
|
| Schlage Standard Features | |
| - Exceeds all ANSI A156.2, 1996, Series 4000, Grade 2 strength and operational
requirements including 400,000 cycle testing. - True through-bolting of door prevents lock chassis rotations and disengagement from latch. - Stainless steel interlocking spindle design for added strength against excess force when lever is in locked position or latch has been fully retraced. - Cold rolled steel, machined, threaded hubs and locking nuts prevent loosening of the lockset by bolting chassis to the door. - Heavy duty compression springs extend life of spring cage, minimize droop and provide smooth, fast return action of levers. - Patented door range adjuster allows quick and easy adjustment of the AL-Series for 1 3/8" - 1 7/8" (35 mm - 48 mm) thick doors. |
|
