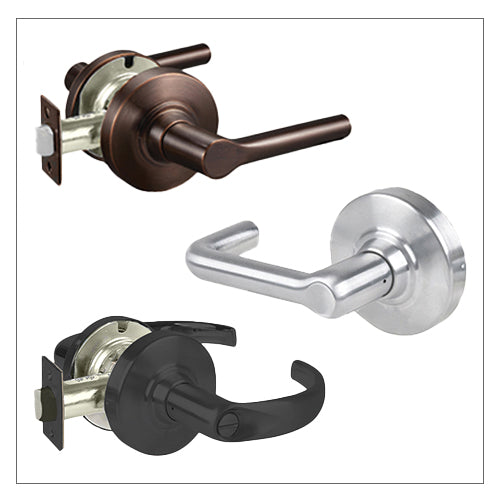

The proven AL Series has evolved As a Grade 2 lock, the AL Series has always offered a combination of strength and durability alongside Schlage trusted key system options at a price point favorable to any application. Though these qualities remain, the lock has changed. ALX Series' features now deliver flexibility and value beyond strength and security. X Factor qualities, born from modular design, define a lock that exceeds expectations. AL Series' evolution to the ALX Series is a revolution in lock design.

The Schlage ALX Series gives you the ability to use it as you would any other lock: ordered and delivered as a complete, configured product ready for installation. However, in its new modular design, ALX Series offers you the flexibility to utilize the separate components of chassis, function and lever packaged kits to create a lock to meet your needs on demand. So whether you are a distributor wanting to offer same day pickup on configured locks in uncommon levers and finishes, a locksmith wanting truck stock solutions that eliminate call backs, or a facility manager wanting to repurpose rooms and change lock functions without the expense of new hardware, ALX Series can work for you.

Choose a lever style from the options below:

The Schlage ALX Series is a grade 2 lock unlike any other. As a modular lock, it features a single, patent pending chassis design that supports most functions and all cylinder applications. The lock's ability to be configured on site to meet the functional need let's you avoid problems. You can do more with less, giving you an unprecedented level of flexibility to every aspect of how you use it in your business.

Features:

- Accommodates 1 3/8" to 1 3/4" door thickness with minimal chassis adjustment.
- Captured screws in latch, strike and inside spring cage eliminate small, loose parts.
- Field reversible Vandlgard® to non-Vandlgard locked lever engagement. Vandlgard® trim is specifically designed for highly abusive environments. The outside lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis.
- Deep-drawn spindle with 5 points of lever engagement minimizes droop and wobble.
- Grade 1 Compression Springs
- Accepts all Schlage plus five competitive cylinder formats.
- Stainless steel latchbolt.

Accessibility

All Schlage ALX Series levers comply with the Americans with Disabilities Act (ADA), which requires that “Operable parts shall be operable with one hand and shall not require tight grasping, pinching, or twisting of the wrist. The force required to activate operable parts shall be 5 pounds (22.2 N) maximum.”

Life Safety

The Schlage ALX Series is UL listed for use on 3-hour fire doors up to 4'0" x 8'0" for standard latches, grade 1 latch performance options available. The Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta and Tubular levers levers comply with the California State fire code for return to within 1/2" of the door face.

Door Handing

ALX Series locks can be configured during installation to support any door handing. As a result, it is not necessary to specify handing during the ordering process
